Content Sizing Guidelines for Collections & Layouts

  • Updated on Nov 5, 2026
  • Published on Jun 18, 2026
Prev Next

When adding uploaded files like videos, images, Slides, or PDFs to your Collections, ensure they are properly sized to fit your chosen layout. Use the guidelines below to format your content correctly.

Other dynamic content like Dashboard Connections, Web Views, and Code Bundles will automatically scale to fit the assigned segment.

Related Resources:

Important Note

These dimensions assume a standard 16:9 aspect ratio. Layouts will scale to fit the actual aspect ratio of your display.

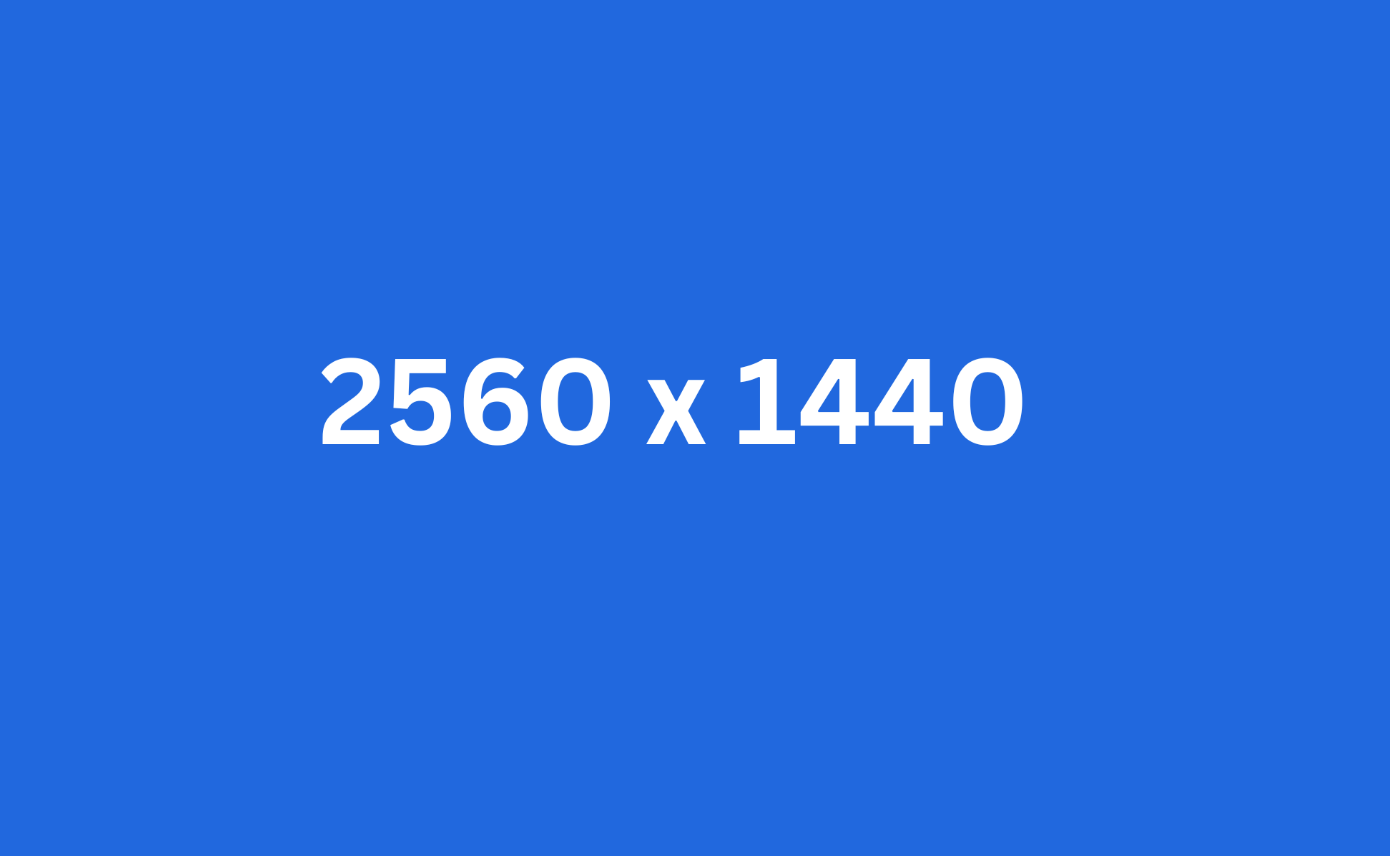

One Pane

  • 1 2560 × 1440 segment

Blue placeholder image displaying the dimensions 2560 x 1440 in large white text.

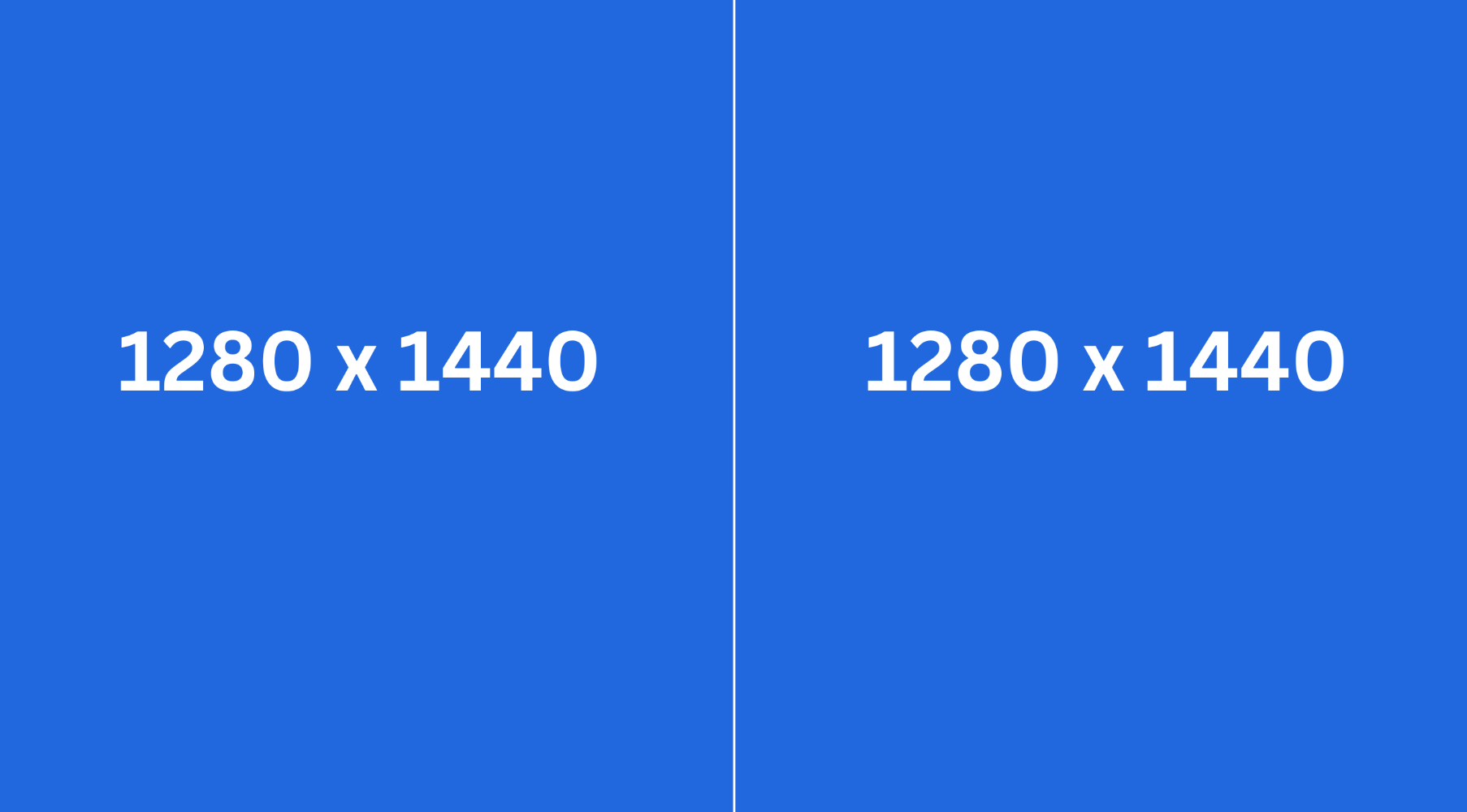

Two Pane

  • 2 1280 × 1440 segments

Blue split-screen graphic displaying the resolution label 1280 x 1440 on both sides.

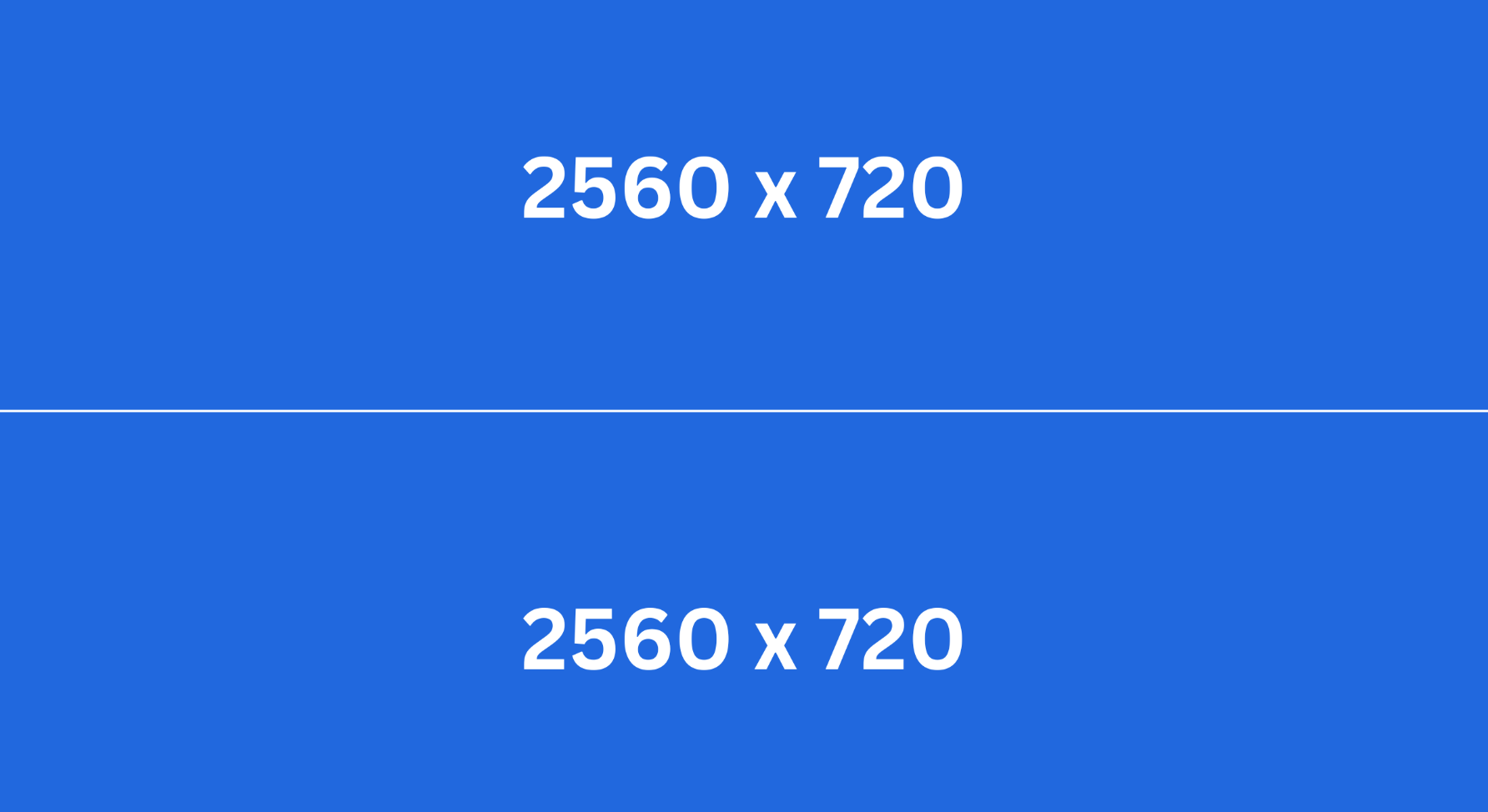

Two Pane Stacked

  • 2 2560 × 720 segments

Blue graphic displaying the dimensions 2560 x 720 twice, separated by a thin horizontal line.

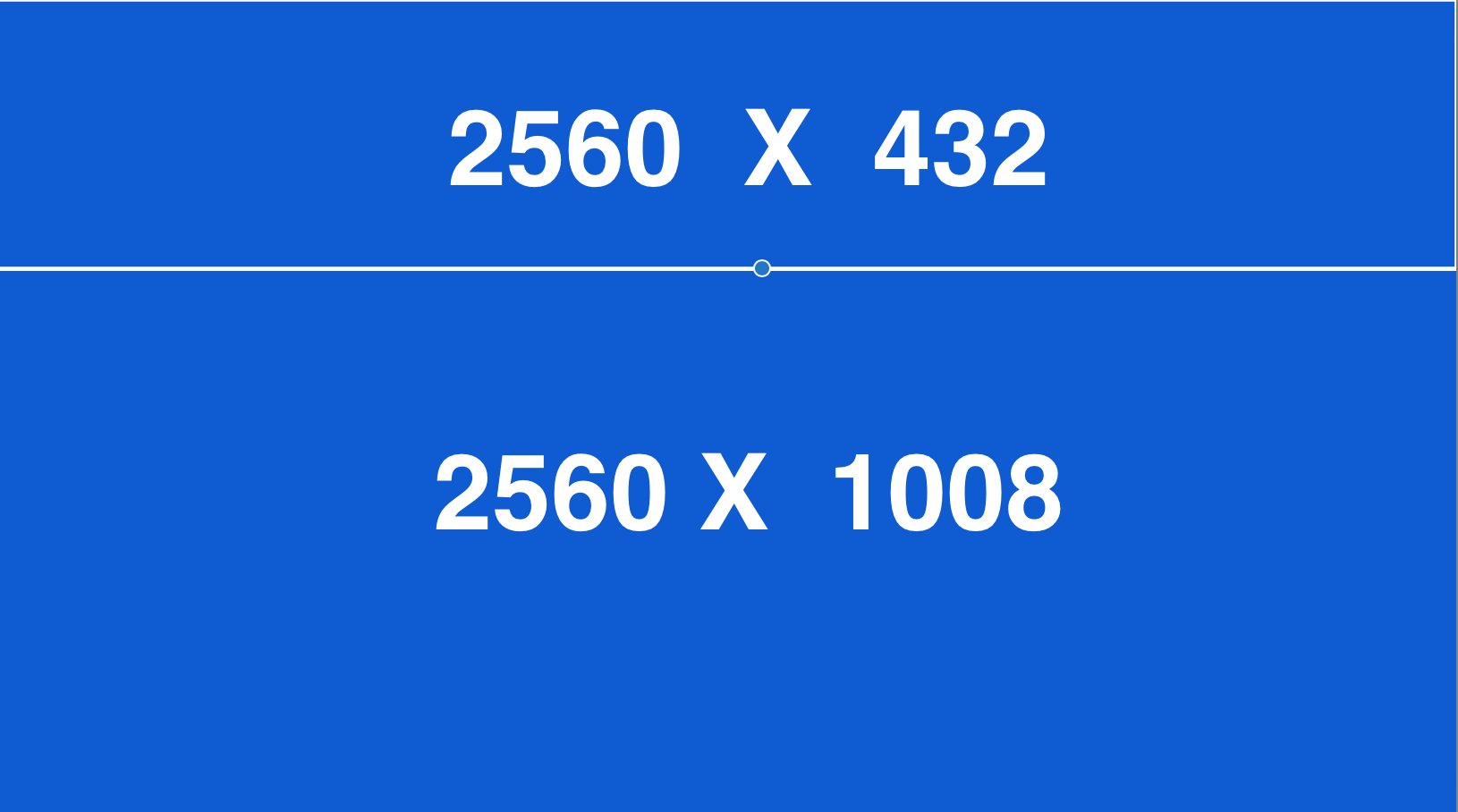

Two Vertical Top

  • 1 2560 × 432 segment

  • 1 2560 × 1008 segment

Blue graphic displaying two image dimensions: 2560 by 432 and 2560 by 1008.

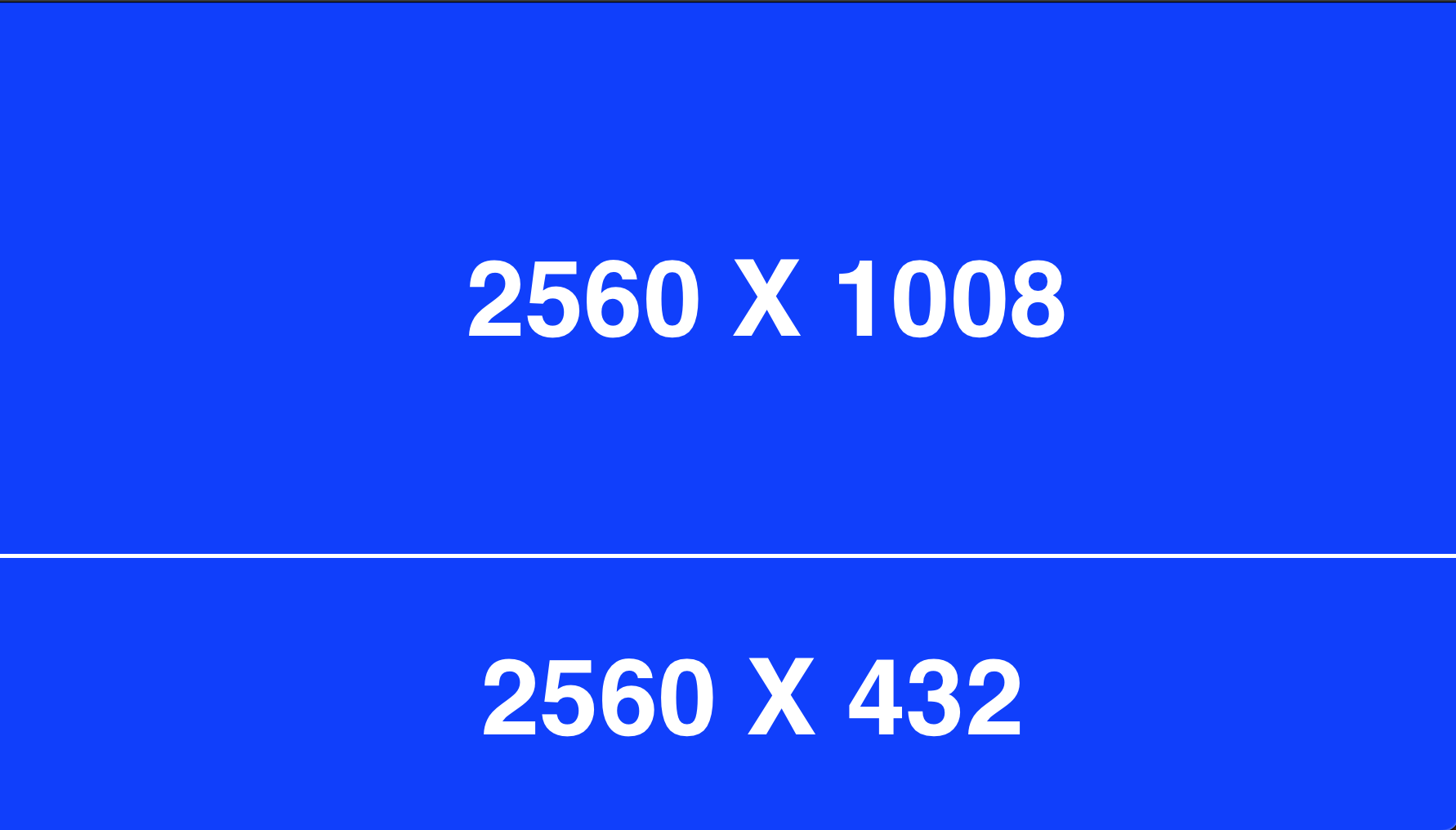

Two Vertical Bottom

  • 1 2560 × 1008 segment

  • 1 2560 × 432 segment

Blue graphic displaying image dimensions 2560 by 1008 and 2560 by 432 in white text.

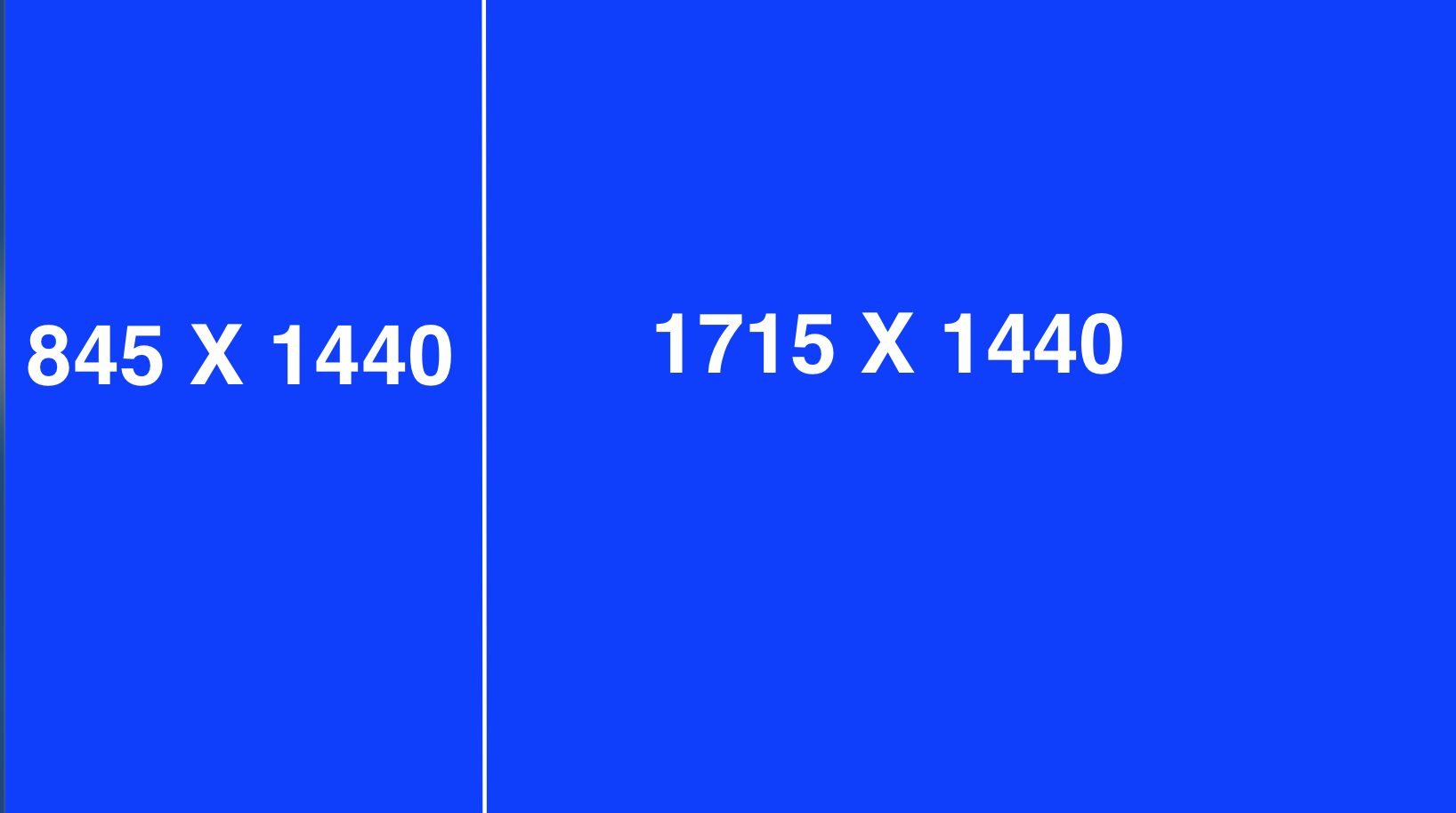

Two (33/67)

  • 1 845 × 1440 segment

  • 1 1715 × 1440 segment

Blue comparison graphic displaying screen resolutions 845 by 1440 and 1715 by 1440.

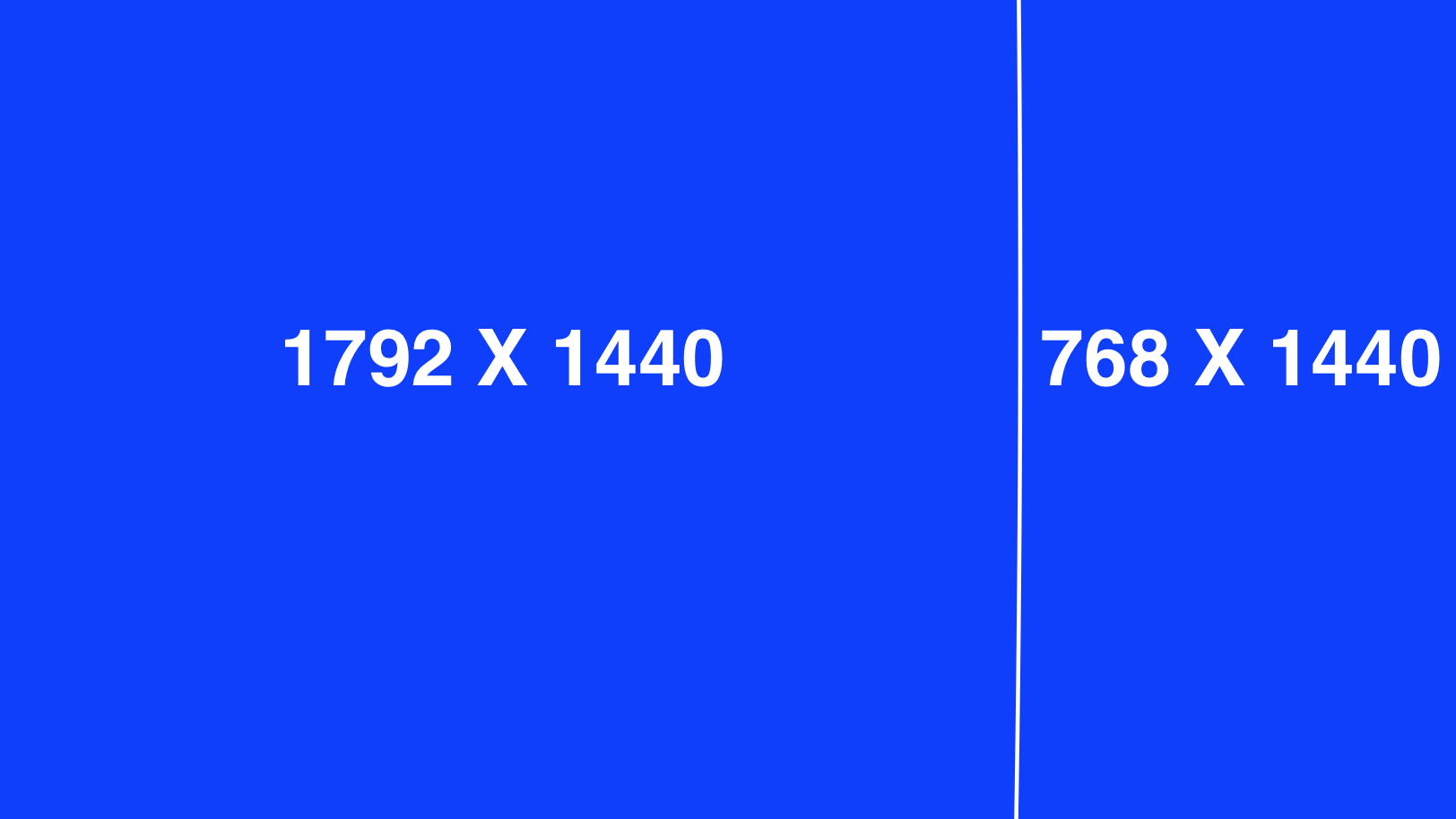

Two (70/30)

  • 1 1792 × 1440 segment

  • 1 768 × 1440 segment

Blue graphic comparing widescreen dimensions, showing 1792 by 1440 and 768 by 1440 resolutions.

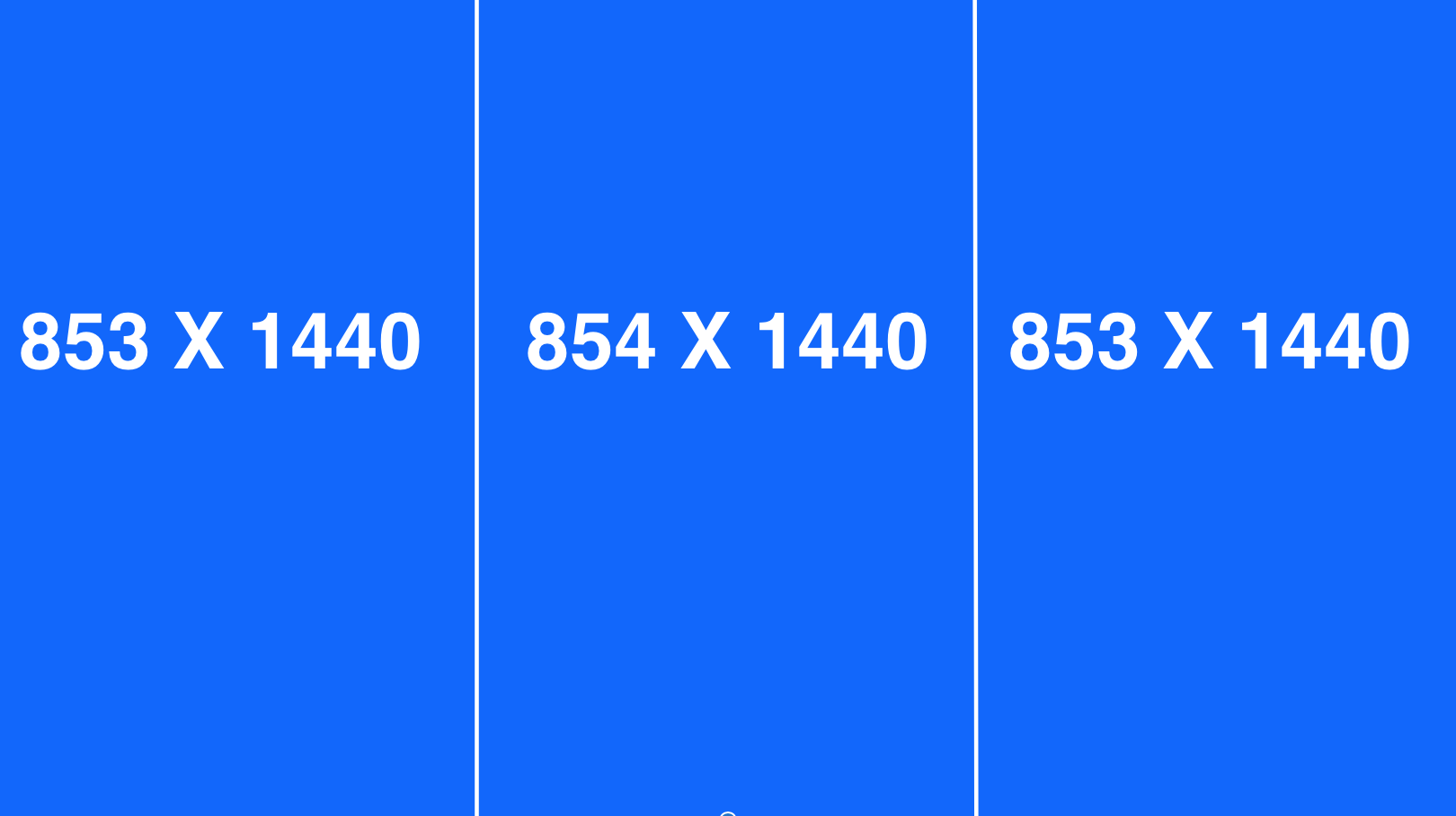

Three Pane Side by Side

  • 2 853 × 1440 segments

  • 1 854 × 1440 segment

Blue graphic displaying three vertical panels labeled 853 x 1440, 854 x 1440, and 853 x 1440.

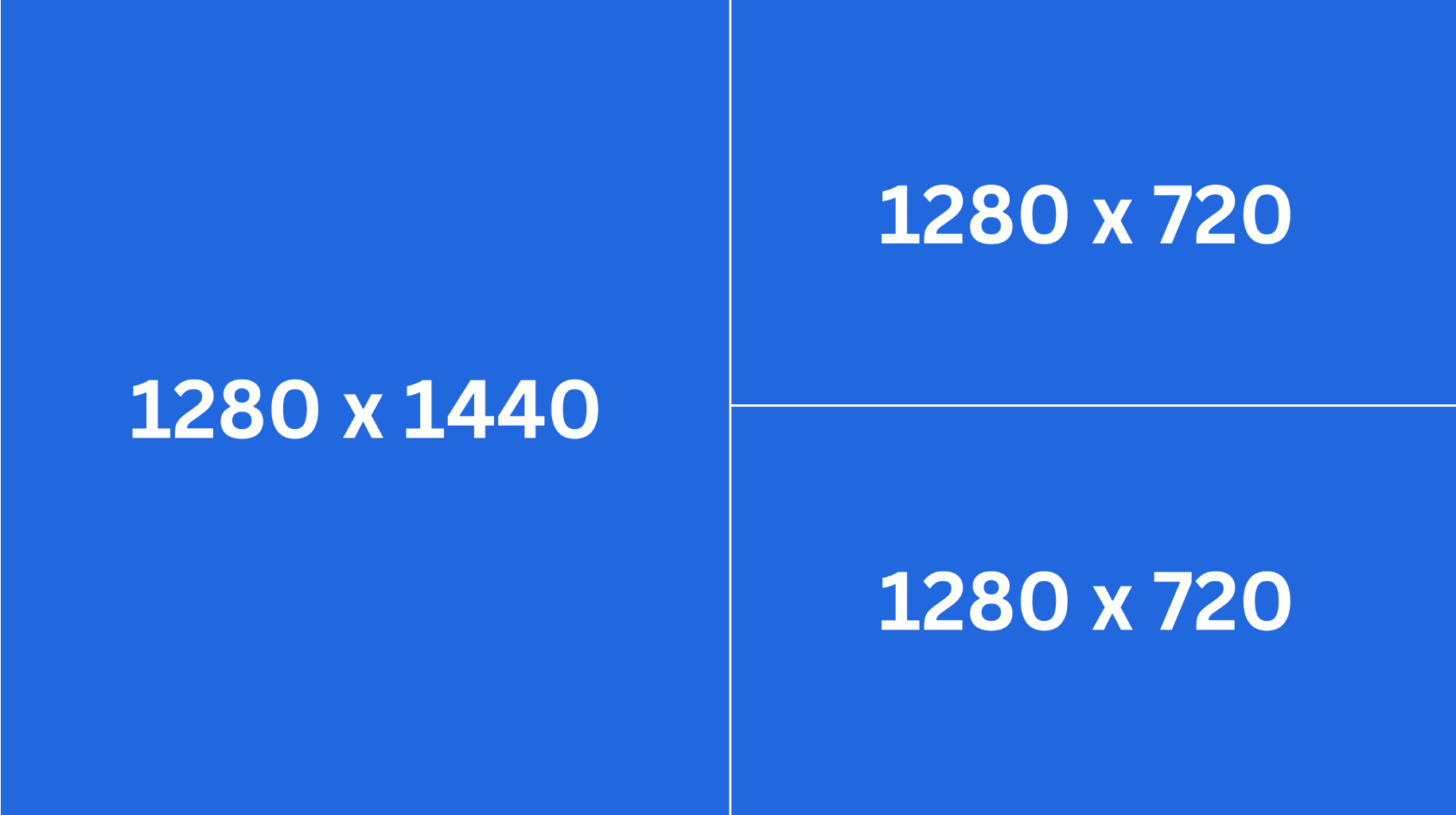

Three Right

  • 1 1280 × 1440 segment

  • 2 1280 × 720 segments

Blue layout displays one 1280 by 1440 panel beside two stacked 1280 by 720 panels.

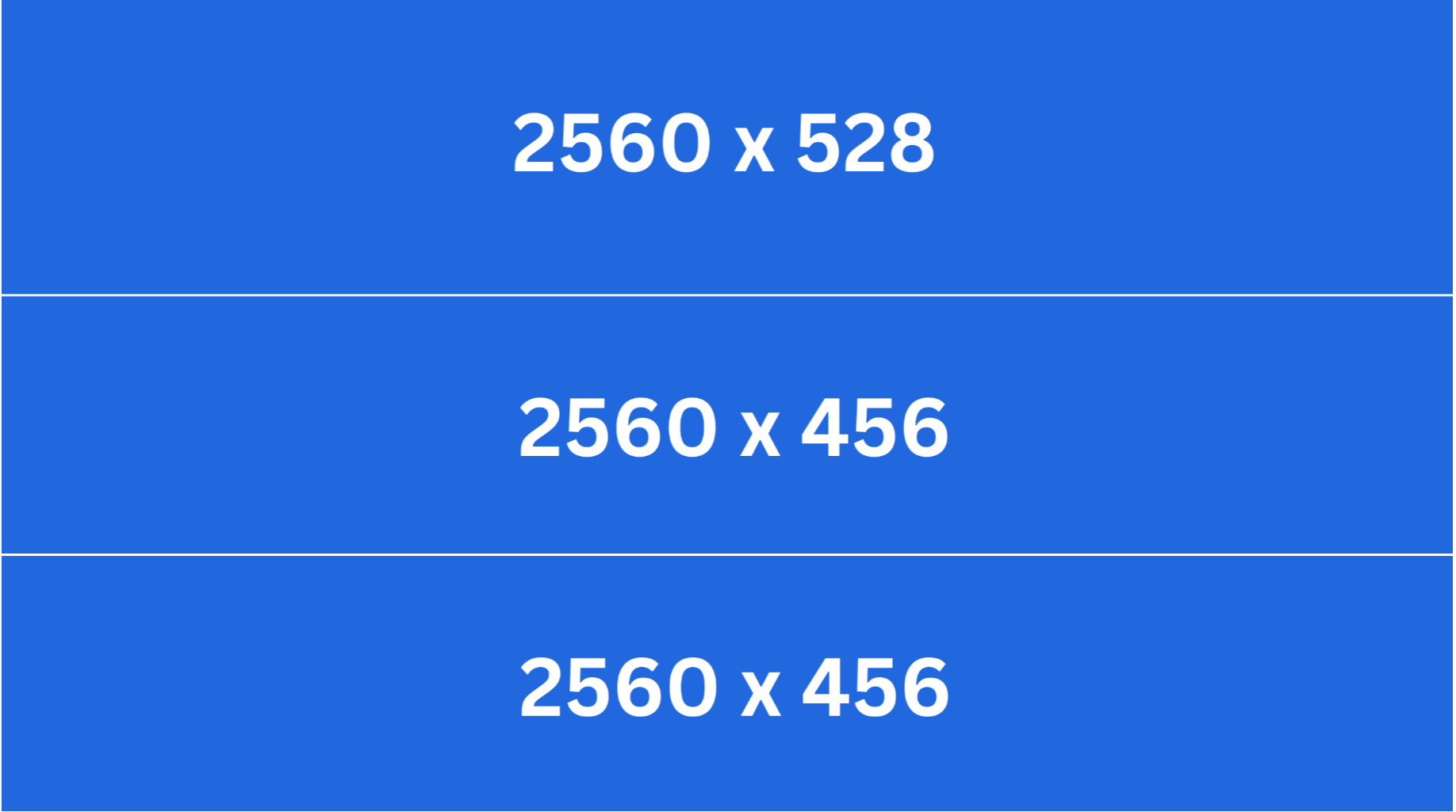

Three Pane Stacked

Blue graphic displaying dimensions 2560 by 528 in the top section and 2560 by 456 twice below.

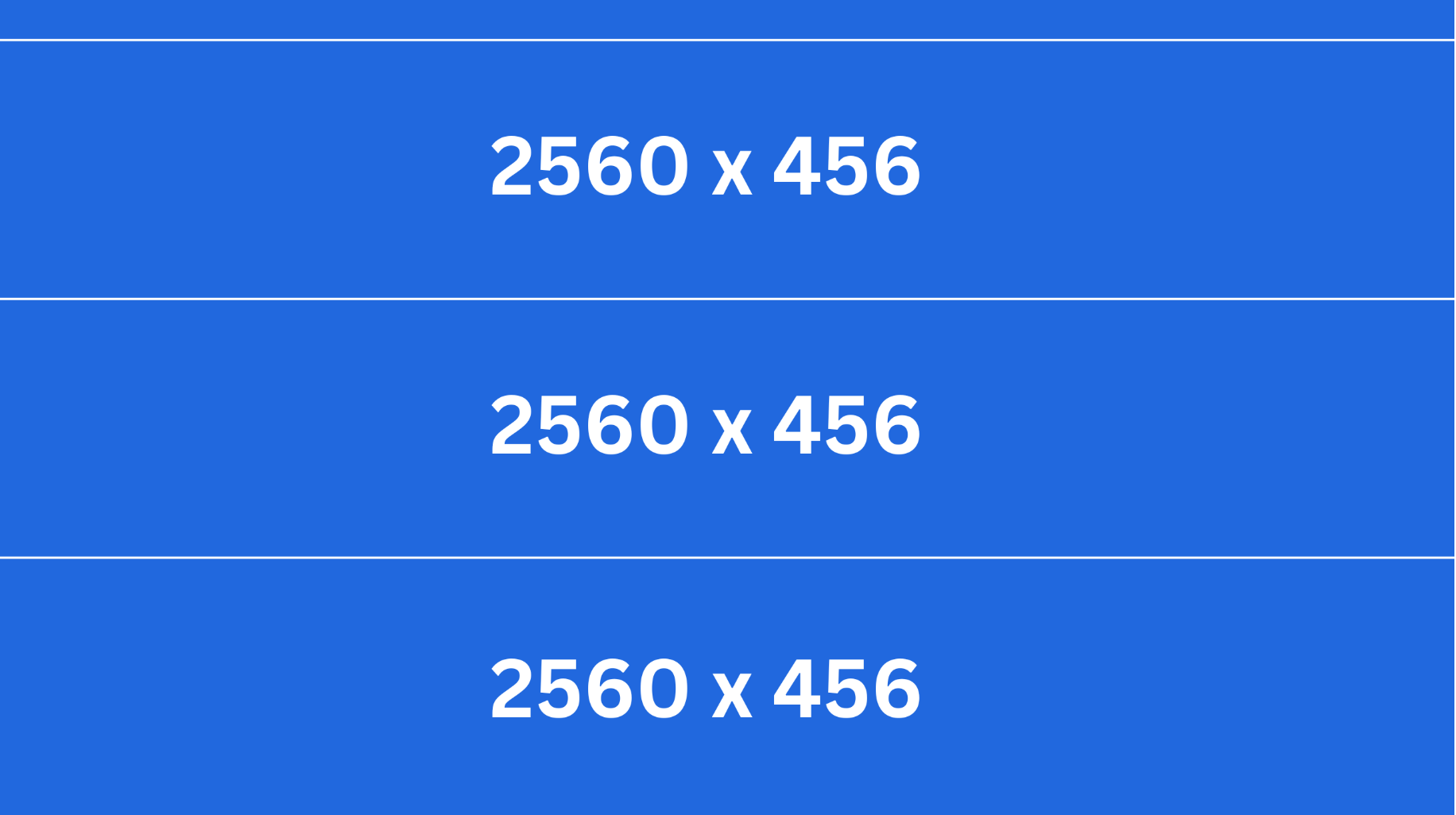

Three Stacked w/Header

Blue layout guide displaying three stacked sections labeled 2560 x 456 beneath a 2560 x 72 header.

Three Vertical

  • 3 2560 × 480 segments

Blue graphic divided into three sections, each displaying the white text “2560 x 480.”

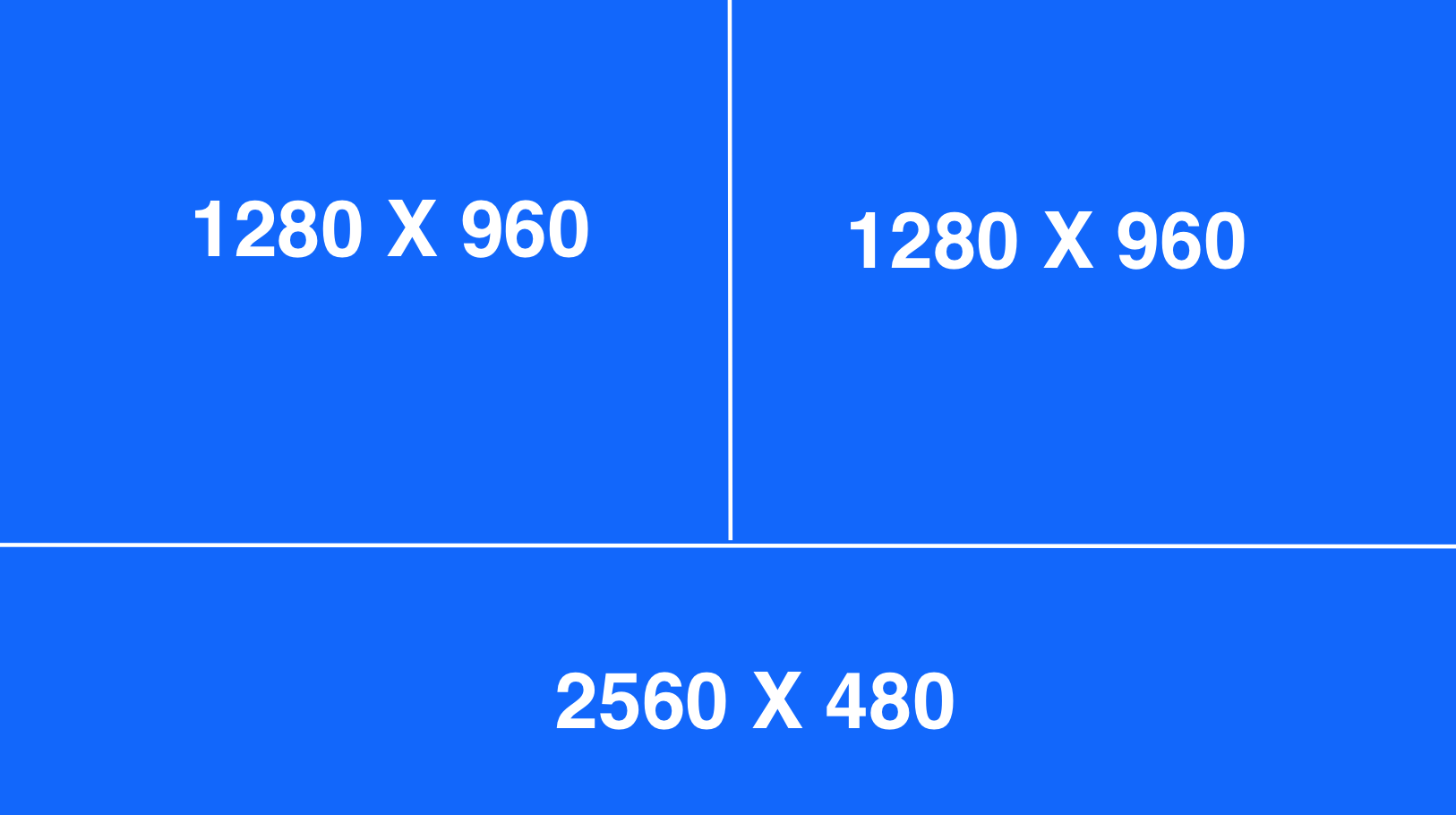

Three Vertical Split

  • 2 1280 × 960 segments

  • 1 2560 × 480 segment

Blue layout template showing two 1280 by 960 panels above one wide 2560 by 480 panel.

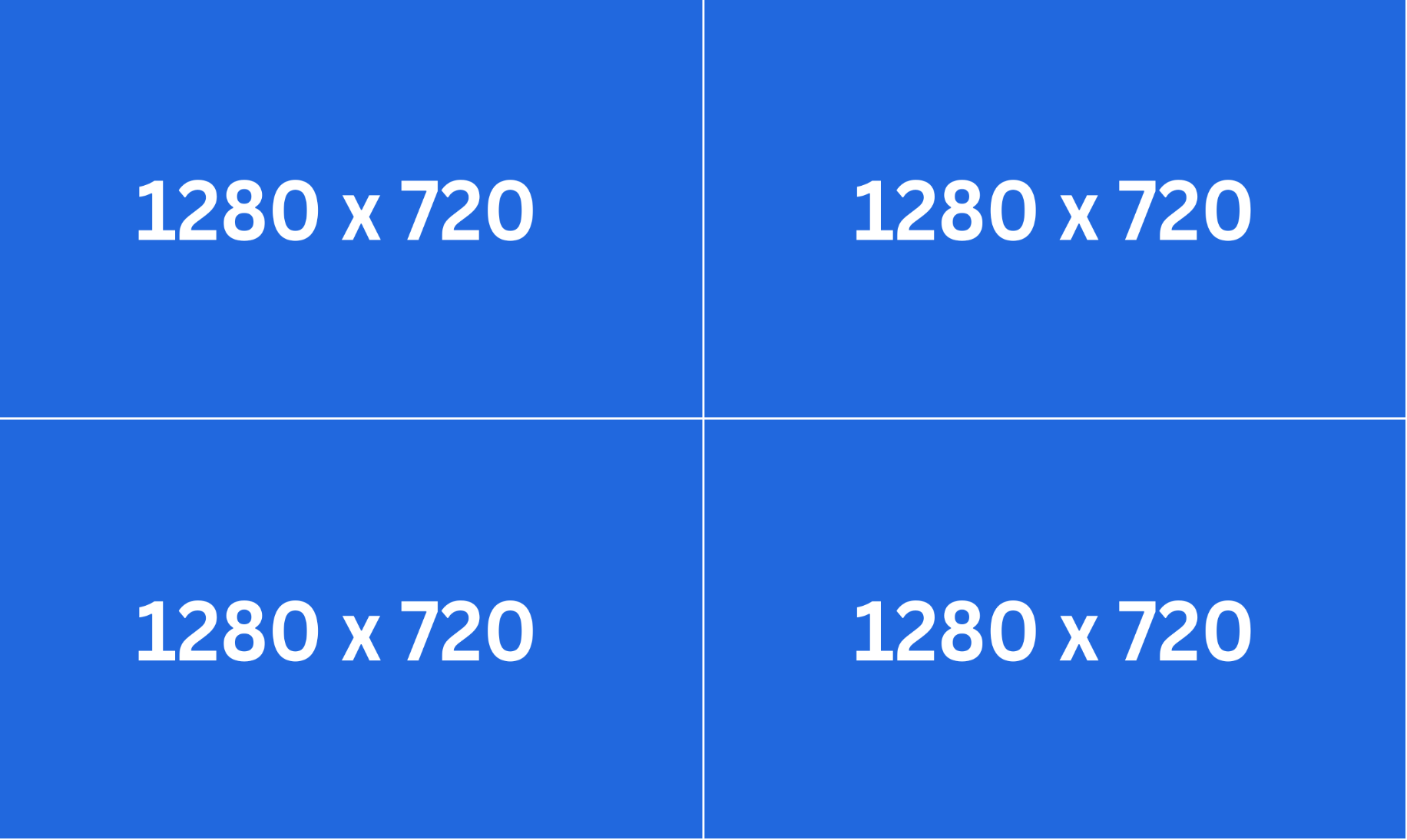

Four Pane

  • 4 1280 × 720 segments

Four blue panels display white 1280 x 720 resolution labels in a grid layout.

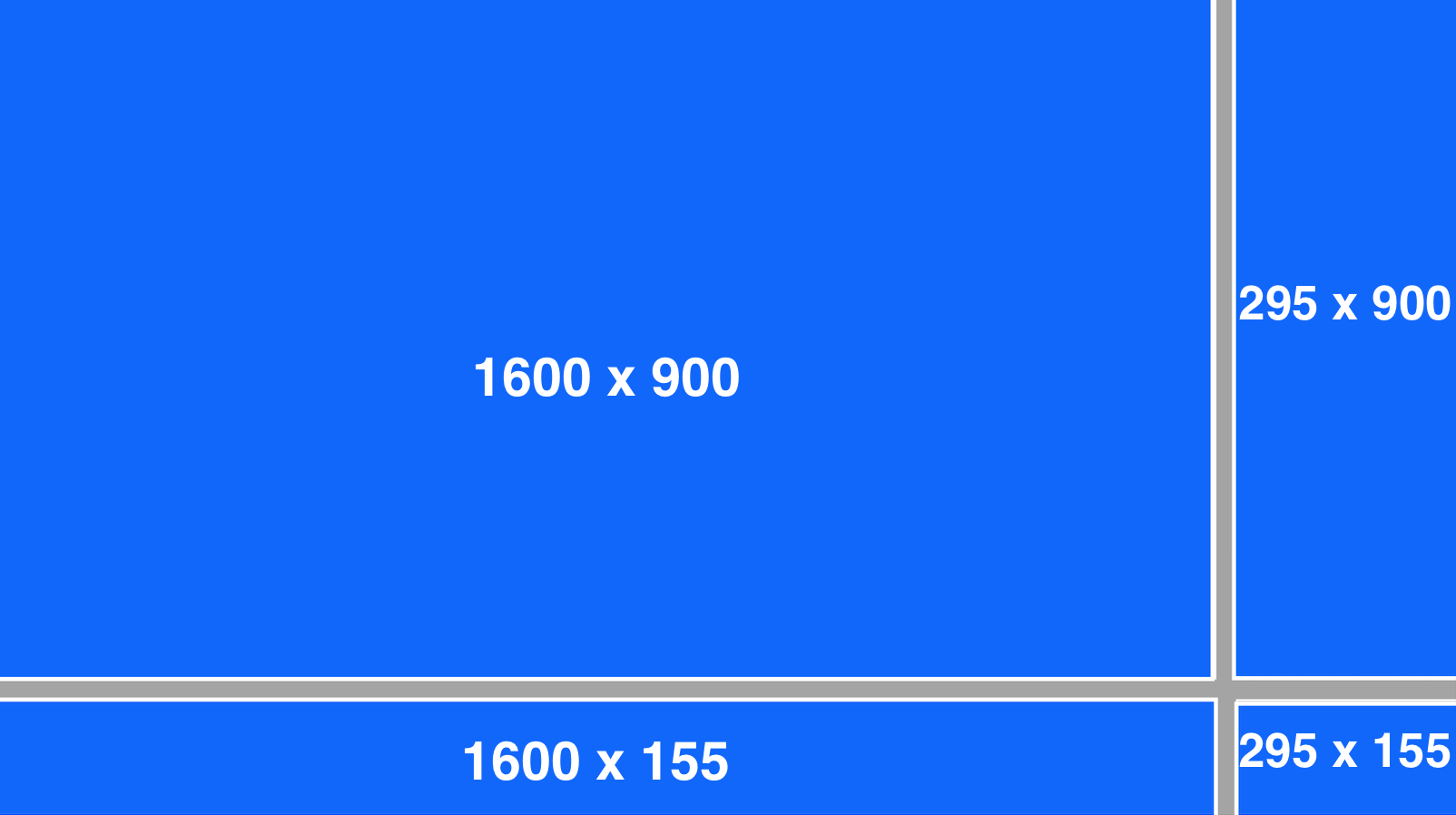

Four Pane B

  • 1 2133 × 1200 segment

  • 1 2133 × 207 segment

  • 1 394 × 1200 segment

  • 1 394 × 207 segment

Note: This layout has black bars separating the segments by design

Blue layout with 2133 x 1200, 394 x 1200, 2133 x 207 and 394 x 207 segments, separated by black bars.

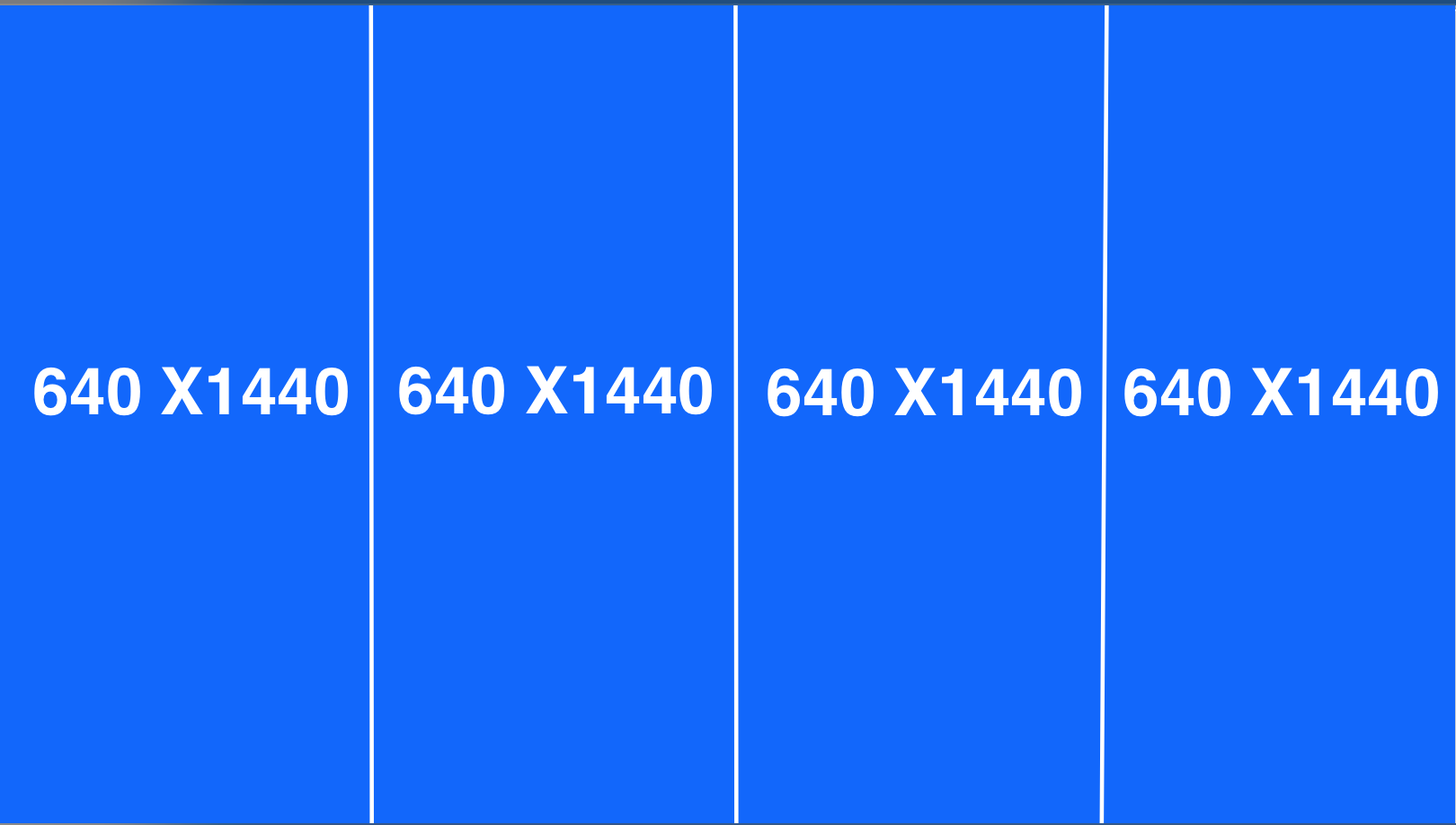

Four Side by Side

  • 4 640 × 1440 segments

Graphic showing four repeated blue panels labeled 640 by 1440, representing identical screen dimensions.

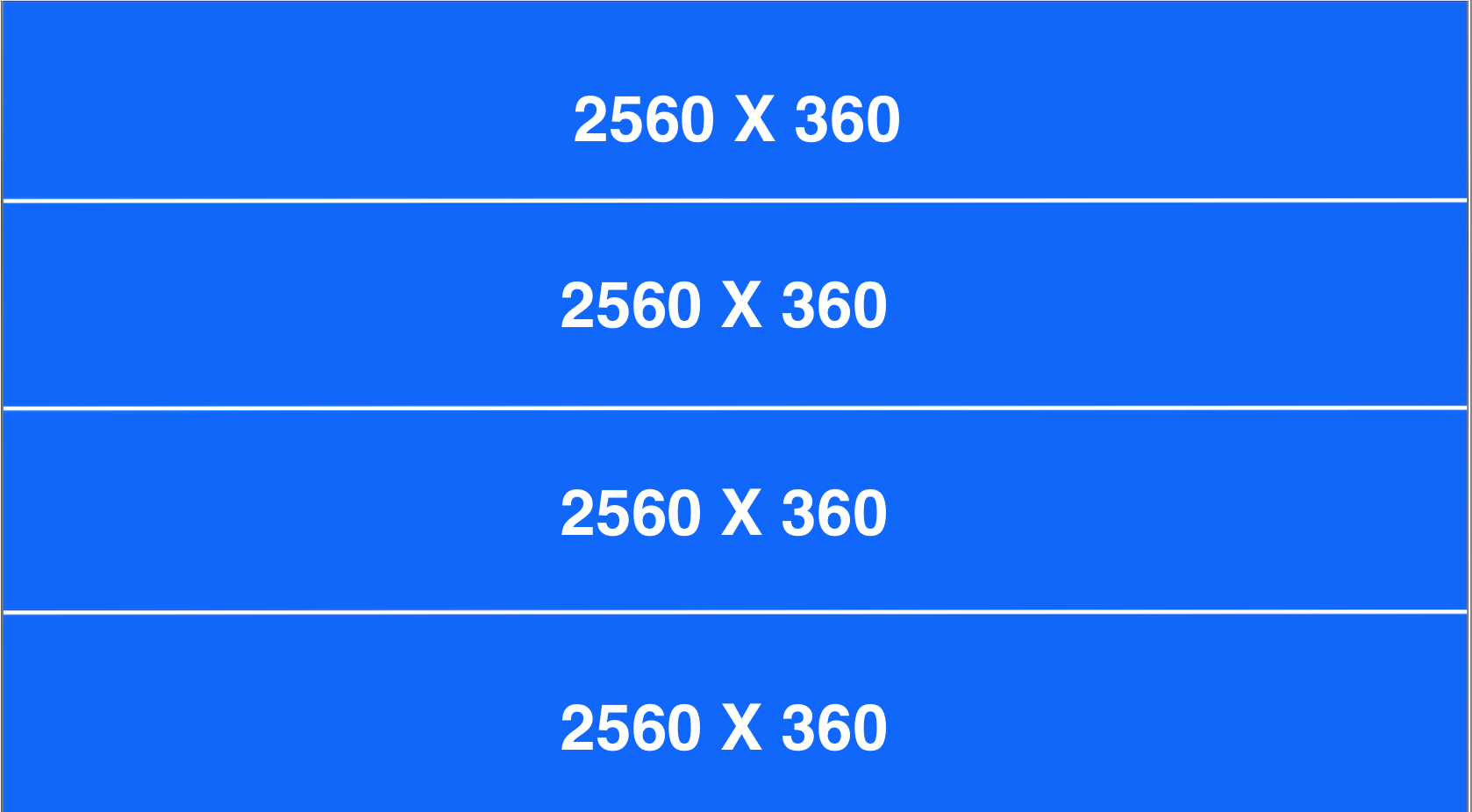

Four Vertical

Blue graphic displaying the dimensions 2560 by 360 repeatedly across four horizontal sections.

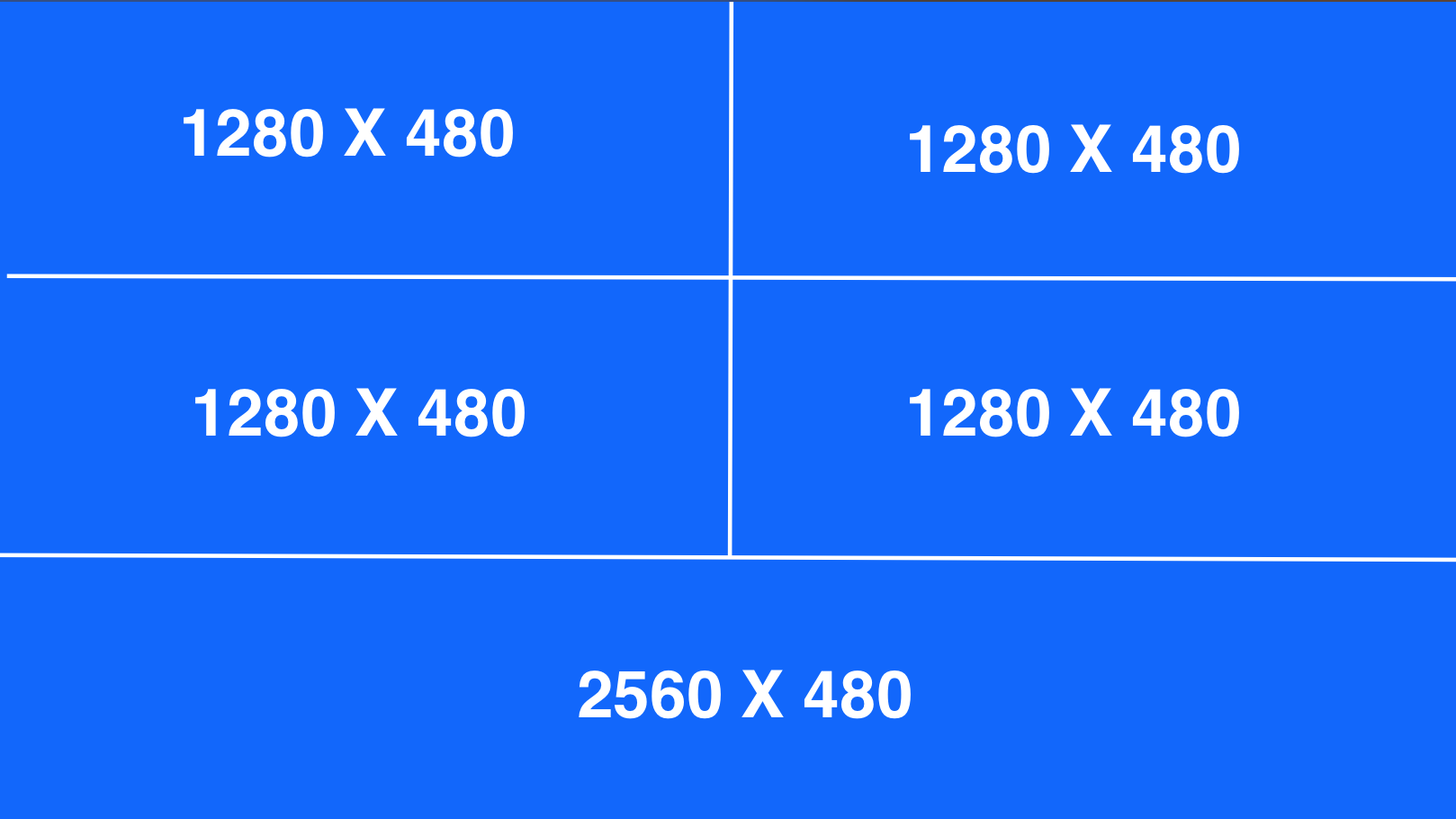

Five Pane

Blue layout displays four 1280 by 480 panels above one wide 2560 by 480 panel.

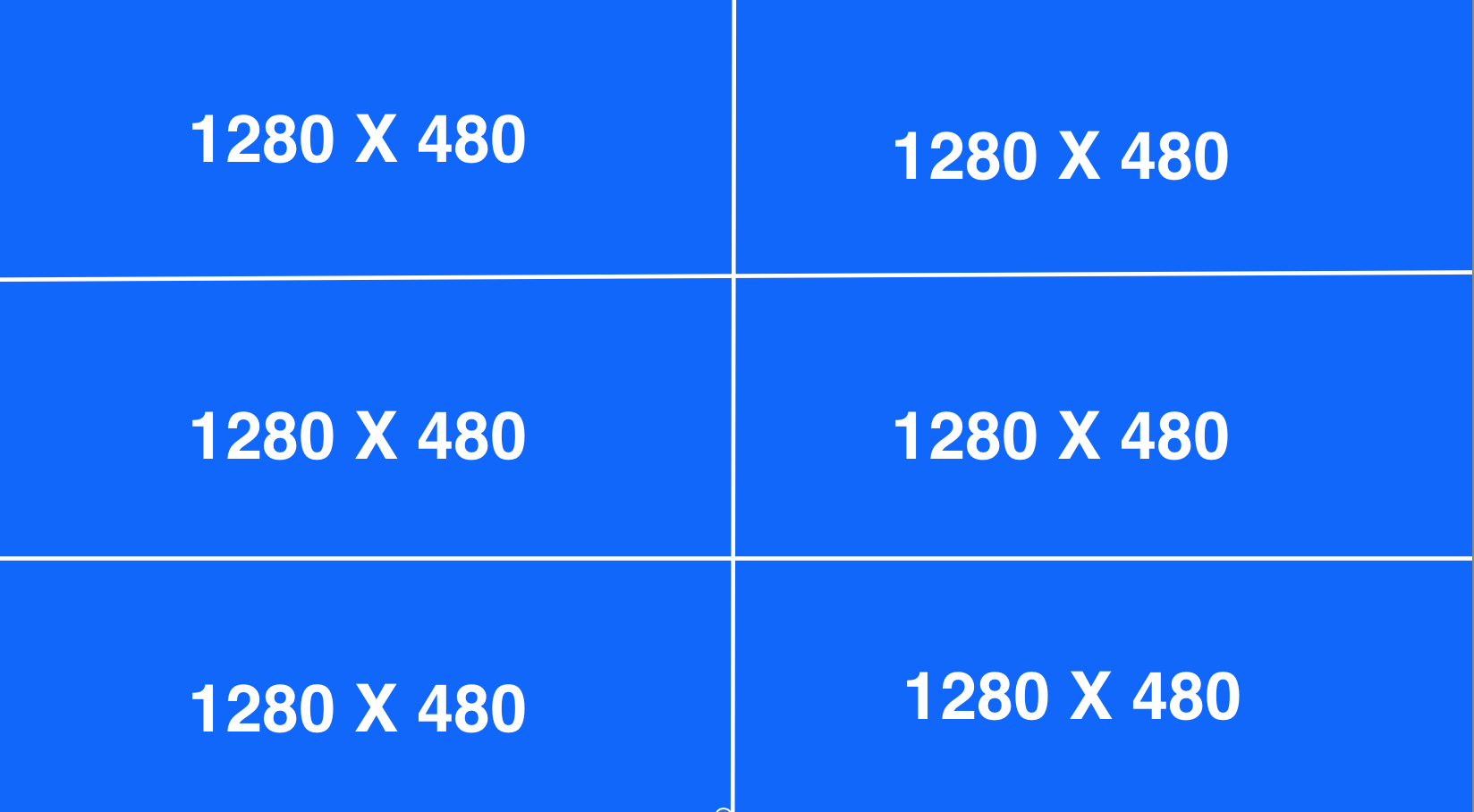

Six Pane

  • 6 1280 × 480 segments

Blue six-panel layout displays identical white “1280 x 480” dimensions in each section.

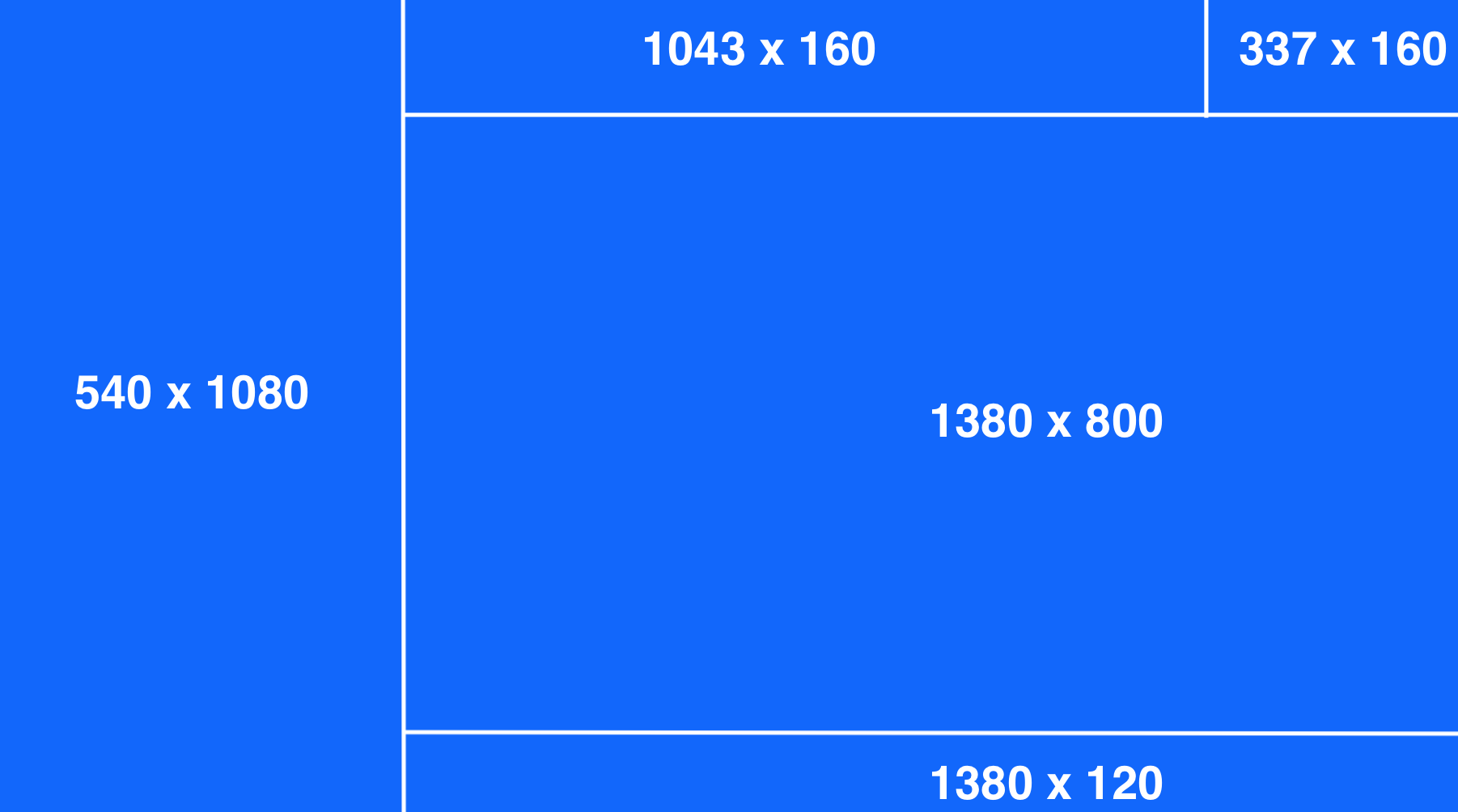

GRE Layout 1

  • 1 720 × 1440 segment

  • 1 1391 × 213 segment

  • 1 449 × 213 segment

  • 1 1840 × 1067 segment

  • 1 1840 × 160 segment

Blue layout with a 720 x 1440 column on the left; on the right, 1391 x 213 and 449 x 213 segments above a 1840 x 1067 segment and a 1840 x 160 strip.

Six Pane with Header

  • 1 612 × 146 segment

  • 1 1948 × 146 segment

  • 2 612 × 548 segments

  • 1 1948 × 1096 segment

  • 1 2560 × 198 segment

Blue layout with 612 x 146 and 1948 x 146 header segments, two 612 x 548 segments beside a 1948 x 1096 segment, and a 2560 x 198 strip at the bottom.

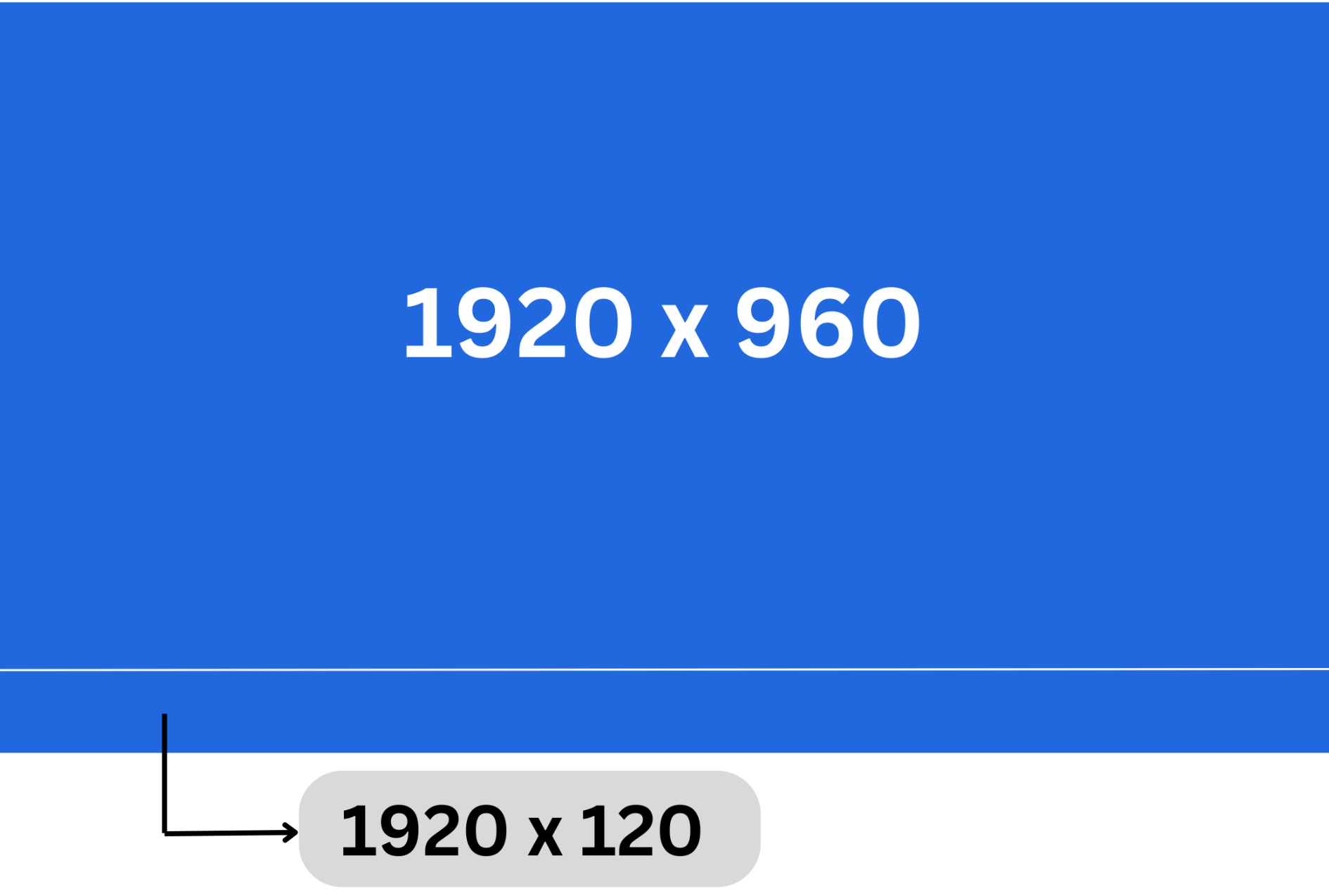

Ticker Standard

  • 1 2560 × 1280 segment

  • 1 2560 × 160 segment

Blue graphic displaying the dimensions 2560 by 1280, with a bottom label showing 2560 by 160.

Portrait Layouts

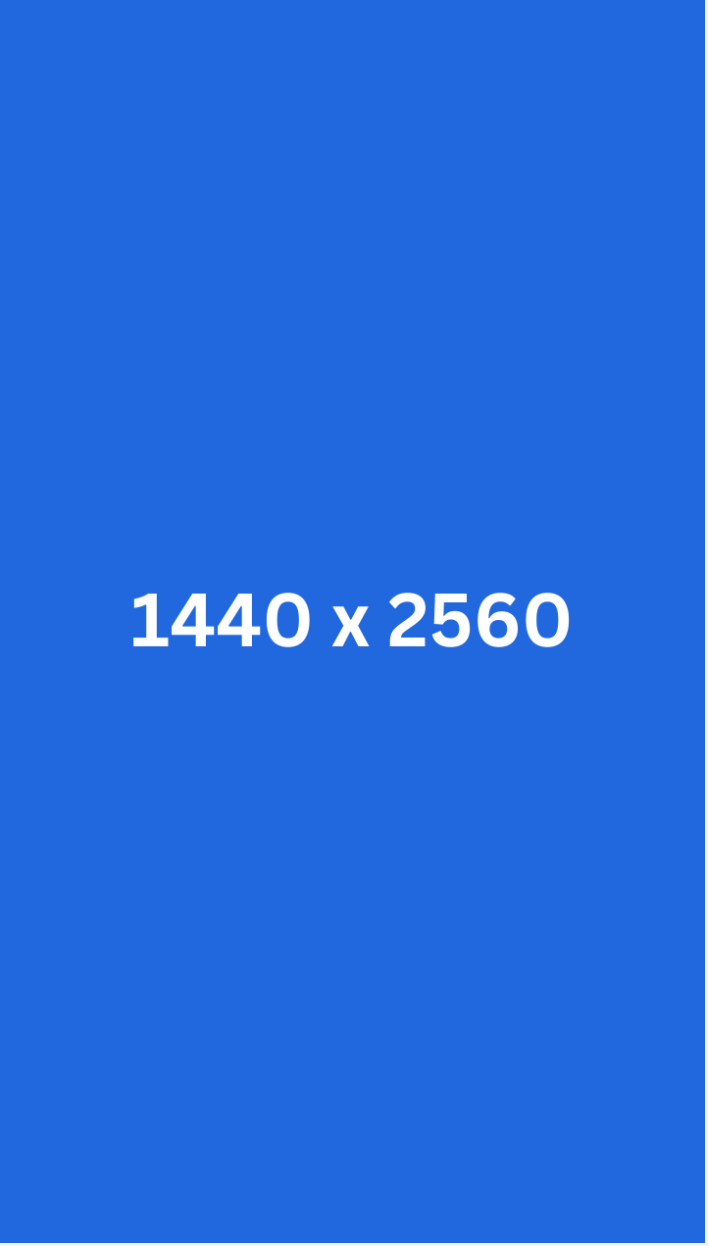

One Pane

  • 1 1440 × 2560 segment

Blue placeholder image displaying the dimensions 1440 by 2560 in large white text.


Two Pane

Blue graphic displaying the dimensions 720 by 2560 in two side-by-side panels.

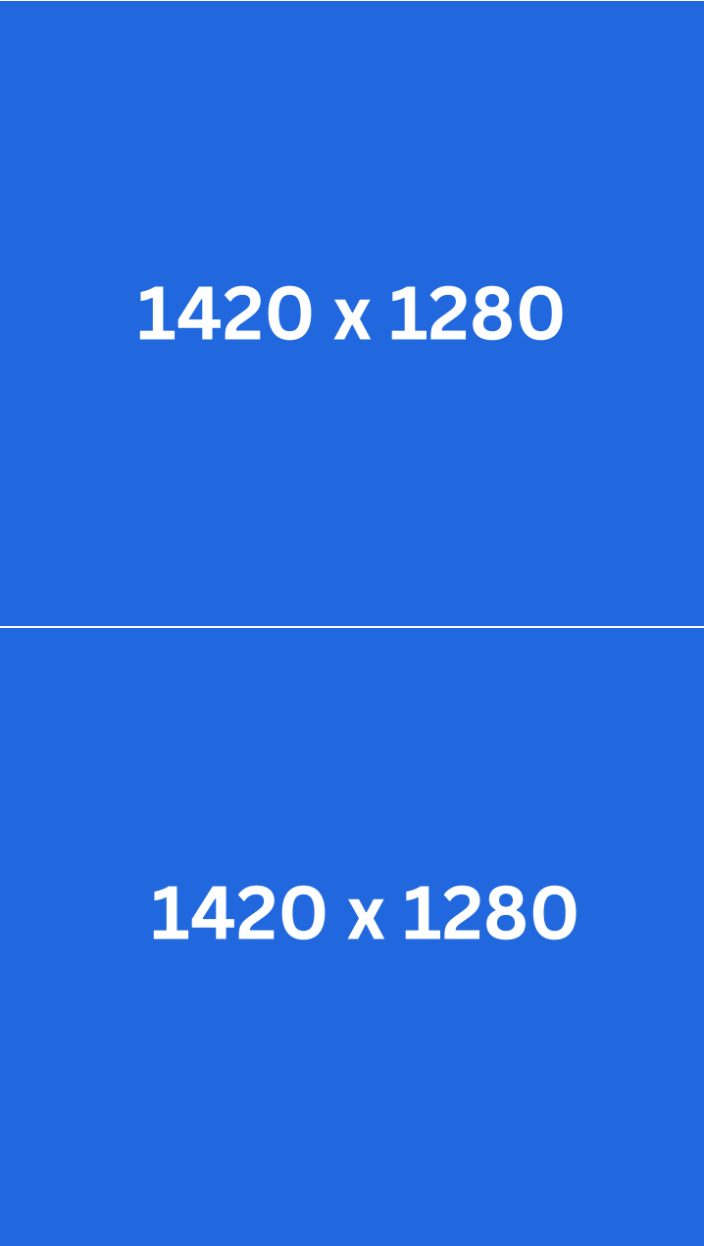

Two Pane Stacked

  • 2 1440 × 1280 segments

Blue placeholder graphic displaying 1440 x 1280 dimensions twice in bold white text.

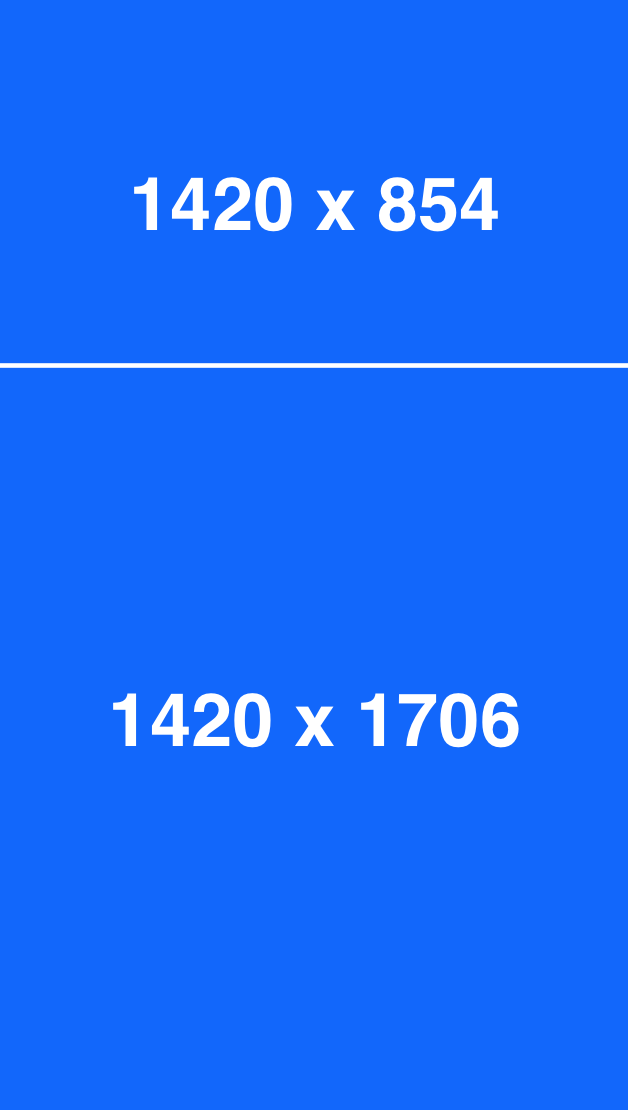

Two Vertical Top

  • 1 1440 × 854 segment

  • 1 1440 × 1706 segment

Blue graphic displaying dimensions 1440 x 854 above a divider and 1440 x 1706 below.

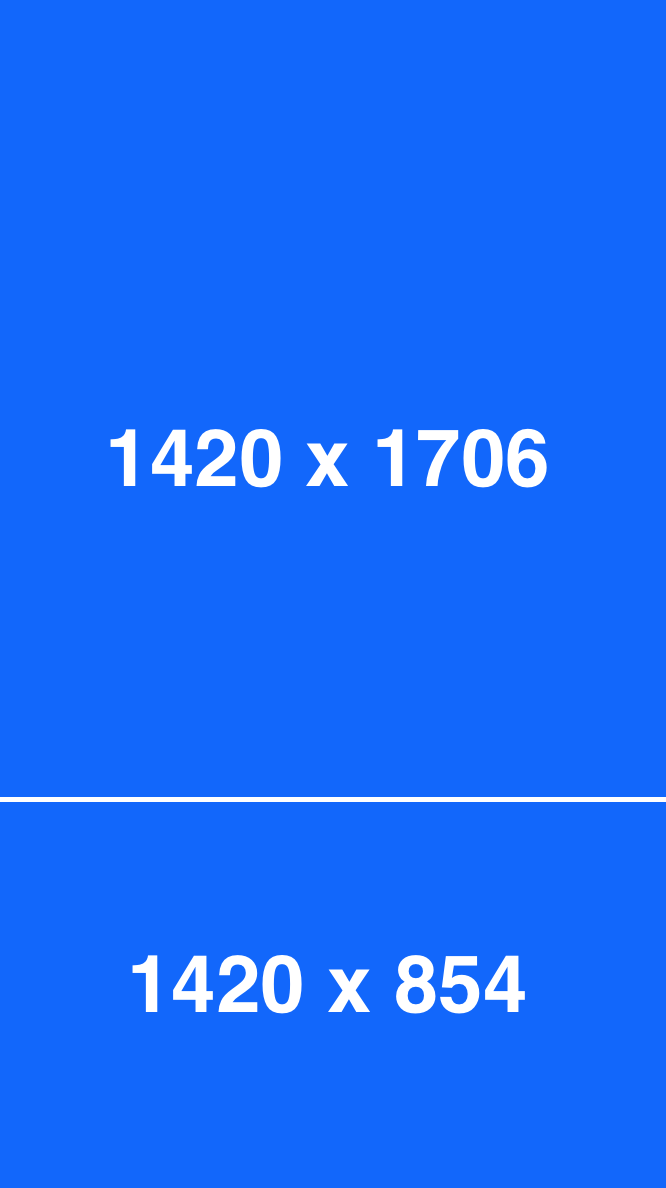

Two Vertical Bottom

  • 1 1440 × 1706 segment

  • 1 1440 × 854 segment

Blue graphic displays white dimensions 1440 x 1706 and 1440 x 854 separated by line.

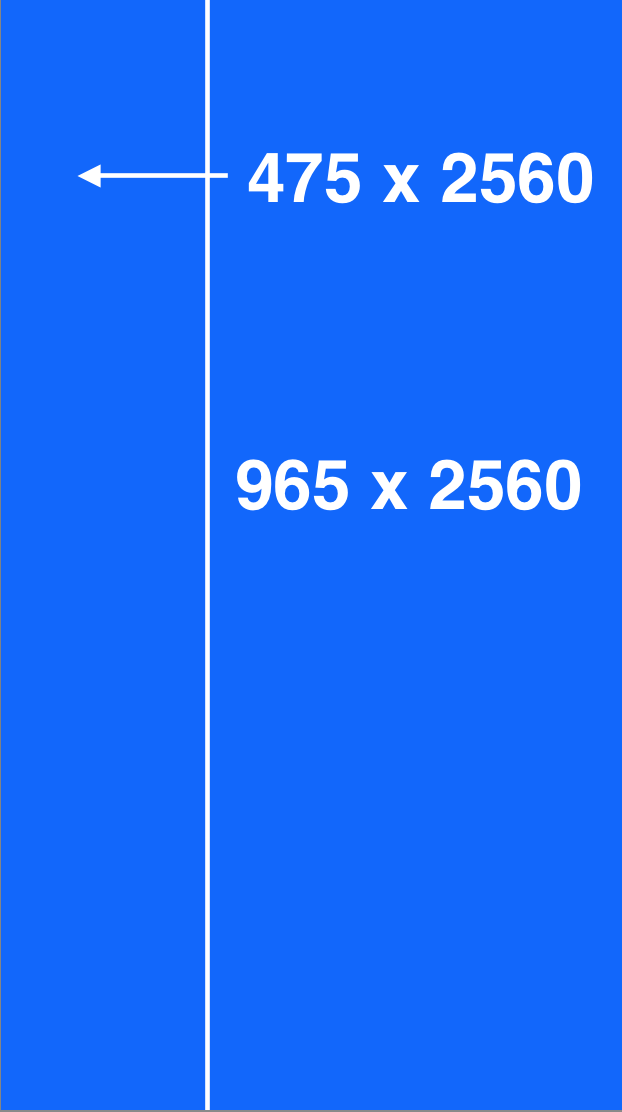

Two (33/67)

  • 1 475 × 2560 segment

  • 1 965 × 2560 segment

Graphic comparing dimensions 475 by 2560 with a wider format measuring 965 by 2560.

Two (70/30)

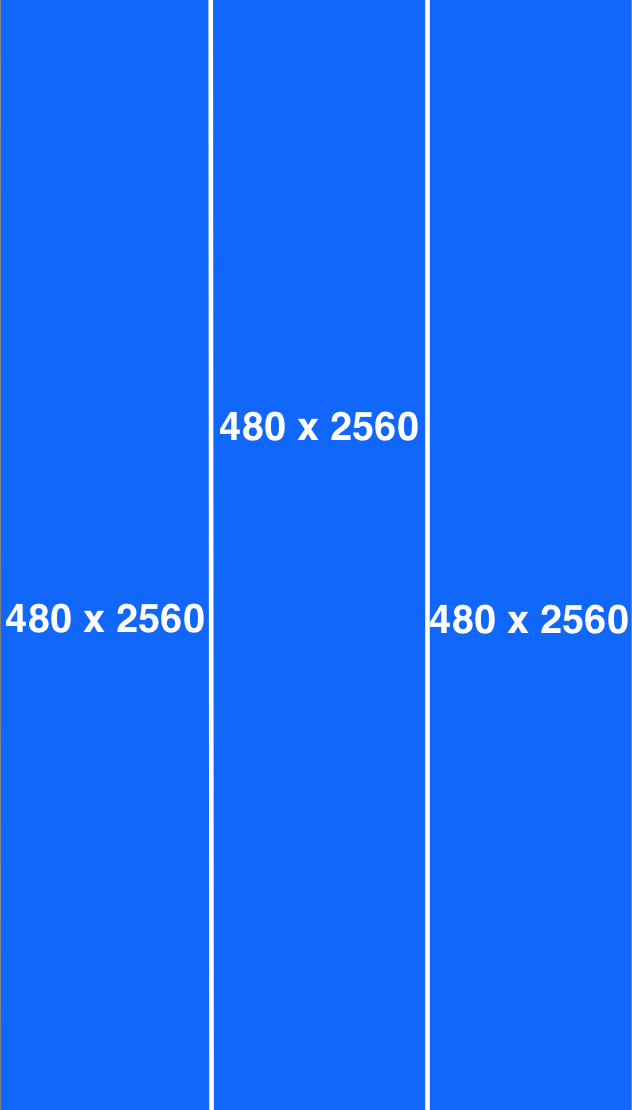

Three Pane Side By Side

Three blue panels display identical 480 by 2560 dimensions in bold white text.

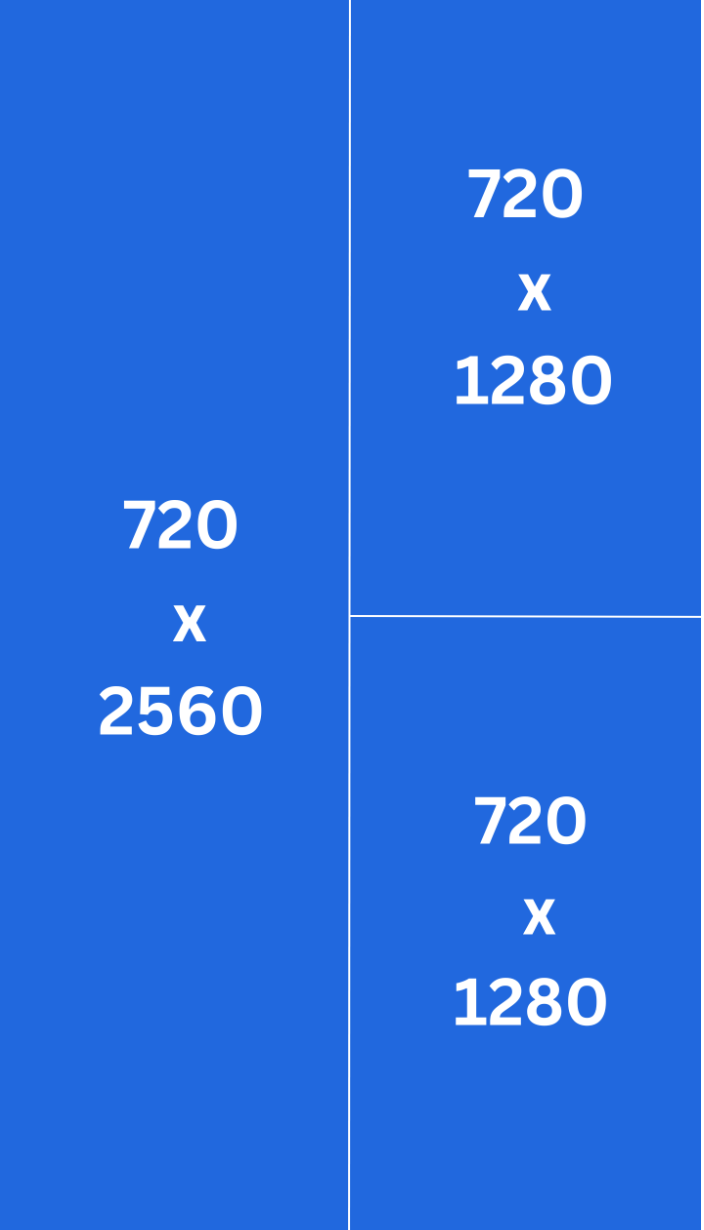

Three Right

  • 1 720 × 2560 segment

  • 2 720 × 1280 segments

Blue layout diagram displays dimensions: left section 720 by 2560, right sections each 720 by 1280.

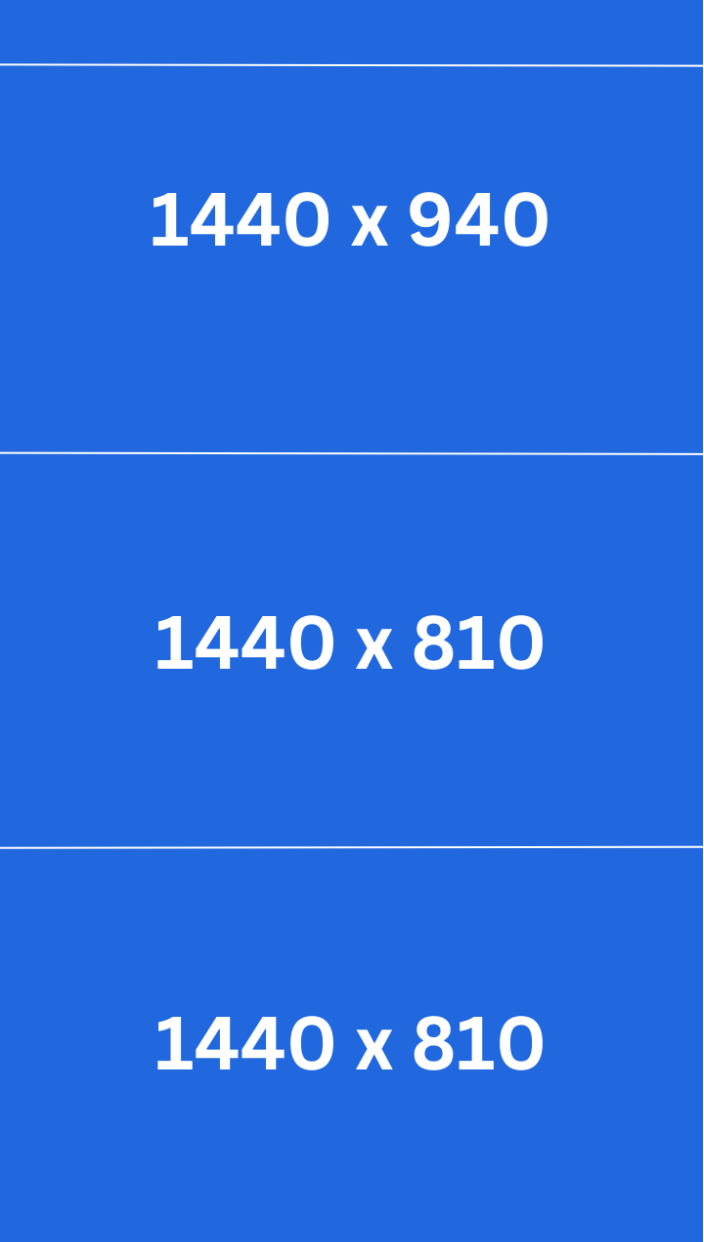

Three Pane Stacked

  • 1 1440 × 940 segment

  • 2 1440 × 810 segments

Blue graphic displaying one 1440 by 940 dimension and two 1440 by 810 dimensions.

Three Stacked w/Header

  • 1 1440 × 130 segment

  • 3 1440 × 810 segments

Blue layout guide displays one 1440 by 130 banner and three 1440 by 810 content sections.

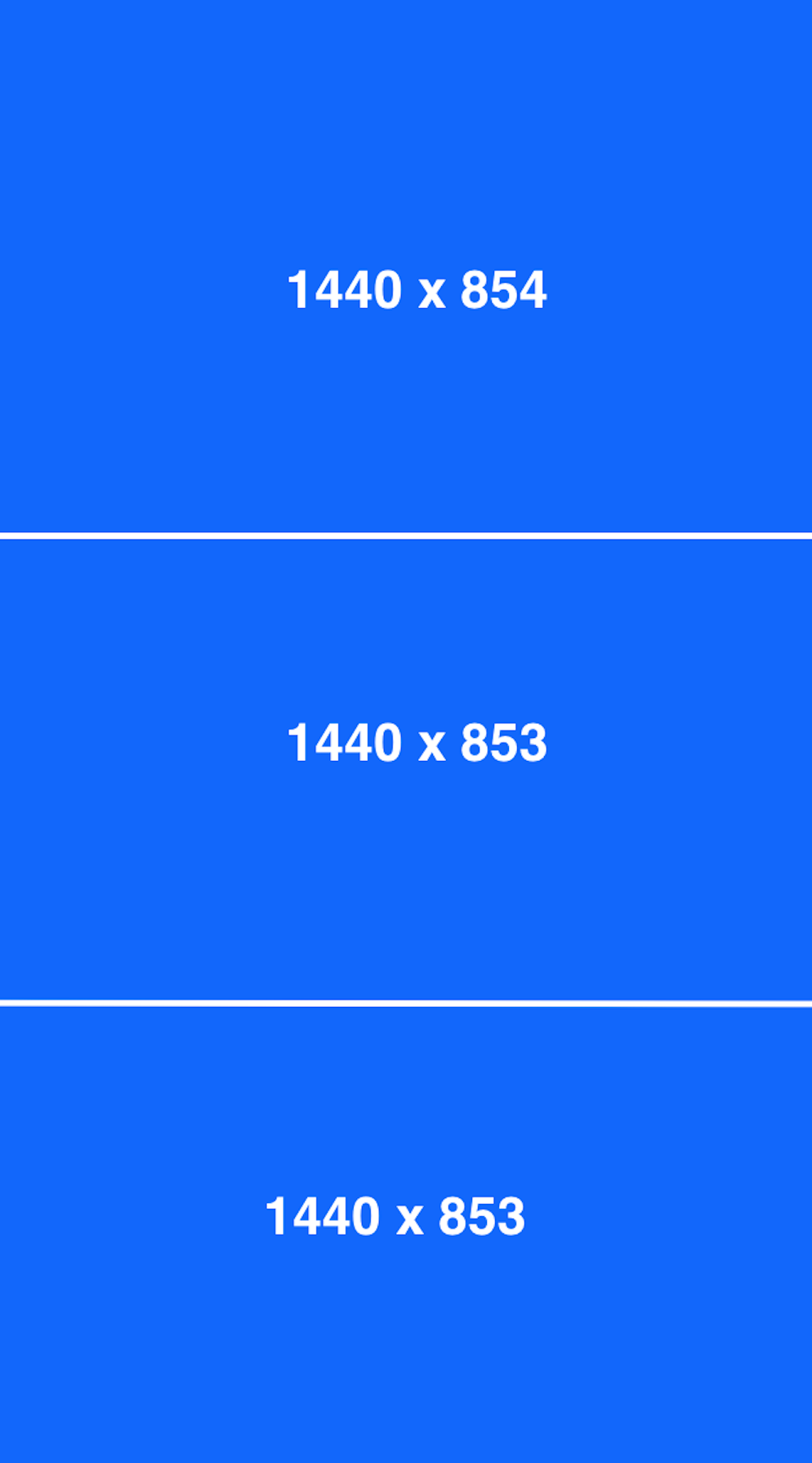

Three Vertical

  • 1 1440 × 854 segment

  • 2 1440 × 853 segments

Blue graphic displaying three stacked resolution labels: 1440 x 854, 1440 x 853, and 1440 x 853.

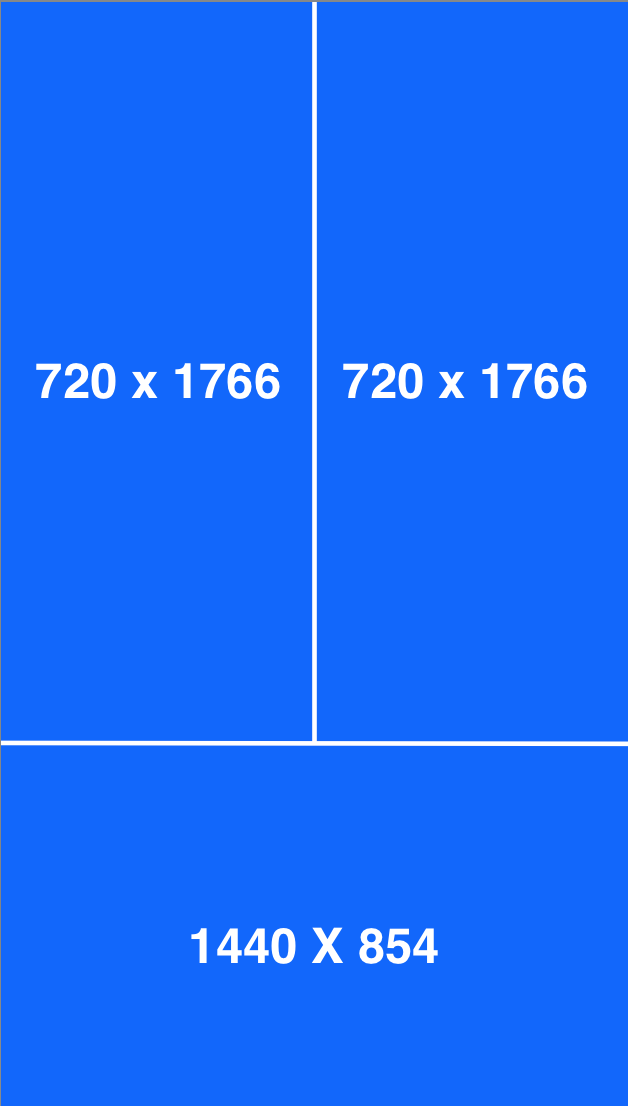

Three Vertical Split

  • 2 720 × 1706 segments

  • 1 1440 × 854 segment

Blue graphic comparing two 720 by 1706 layouts above a 1440 by 854 layout.


Four Pane

Blue four-panel graphic displaying repeated white 720 by 1280 dimensions in each section.

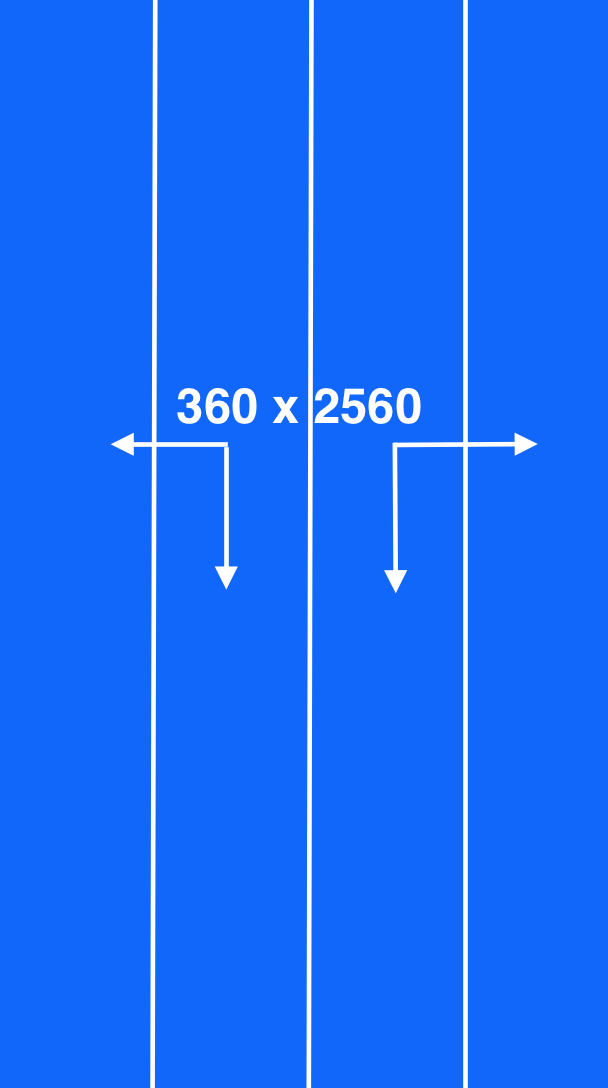

Four Side by Side

  • 4 360 × 2560 segments

Blue graphic showing four vertical panels, each labeled 360 x 2560.

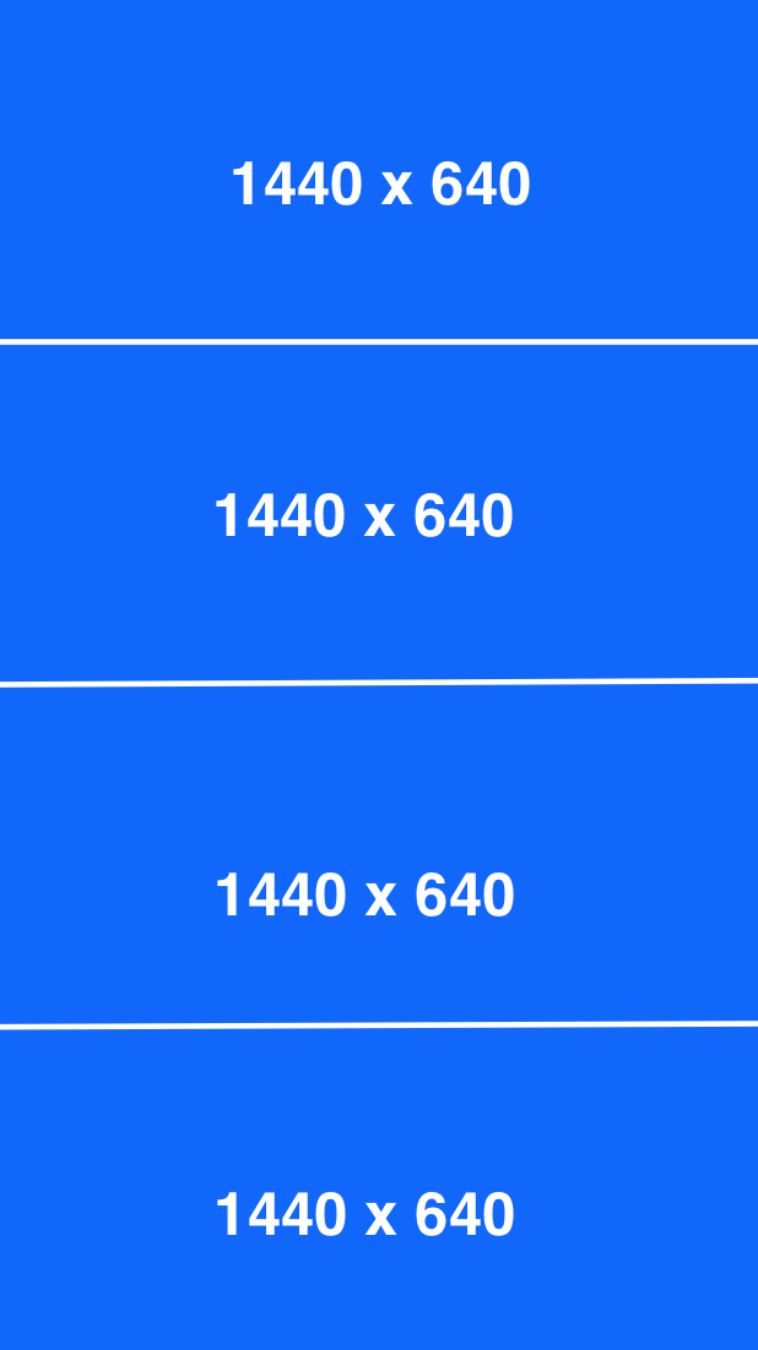

Four Vertical

  • 4 1440 × 640 segments

Four stacked blue panels each display the white dimension text “1440 x 640.”

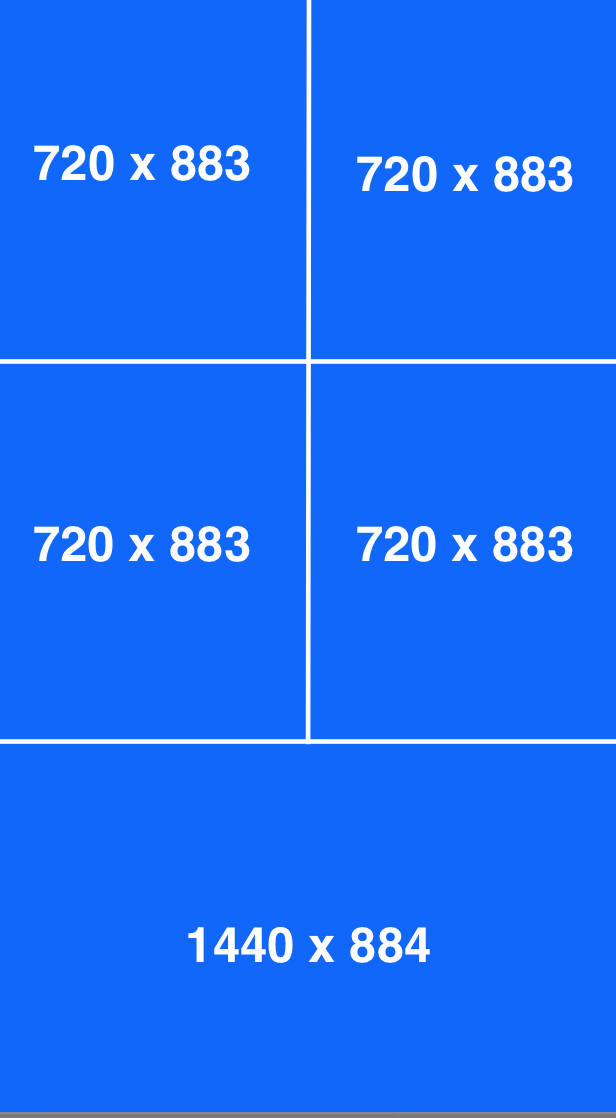

Five Pane

  • 4 720 × 853 segments

  • 1 1440 × 854 segment

Blue layout diagram showing four 720 by 853 panels above one wider 1440 by 854 panel.

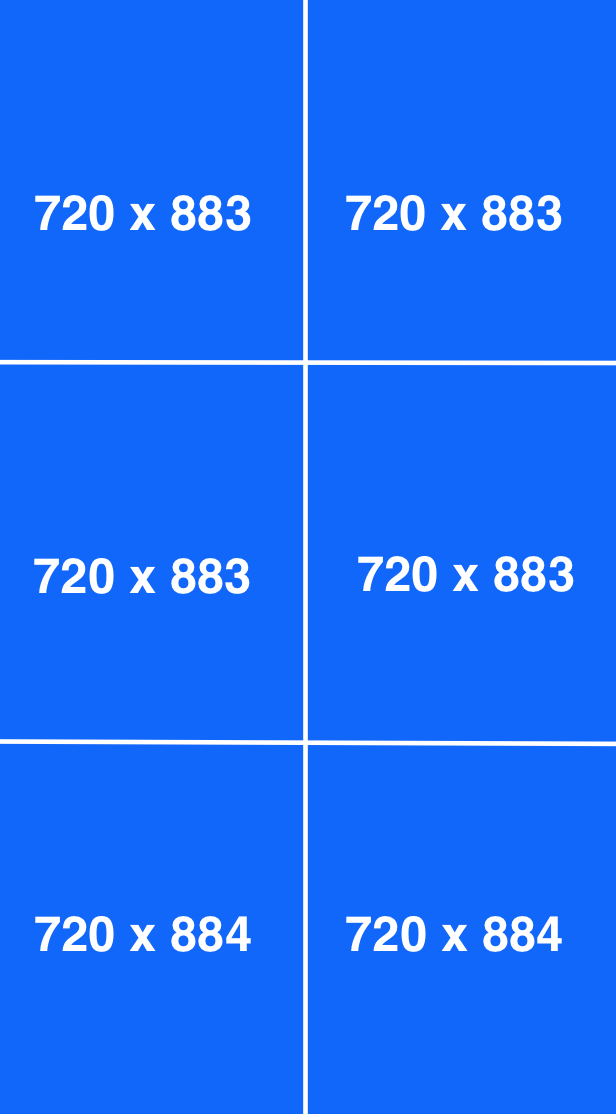

Six Pane

  • 4 720 × 853 segments

  • 2 720 × 854 segments

Blue grid displays repeated 720 by 853 dimensions, with 720 by 854 shown in the bottom row.

Six Pane with Header

  • 1 344 × 260 segment

  • 1 1096 × 260 segment

  • 2 344 × 974 segments

  • 1 1096 × 1948 segment

  • 1 1440 × 352 segment

Blue layout with 344 x 260 and 1096 x 260 header segments, two 344 x 974 segments beside a 1096 x 1948 segment, and a 1440 x 352 strip at the bottom.

Ticker Standard

  • 1 1440 × 2400 segment

  • 1 1440 × 160 segment

Blue graphic displaying 1440 by 2400 dimensions and a bottom section labeled 1440 by 160.

Note:

Some layouts may not be available in your current edition. Please contact support to enable them for your Tenant.
